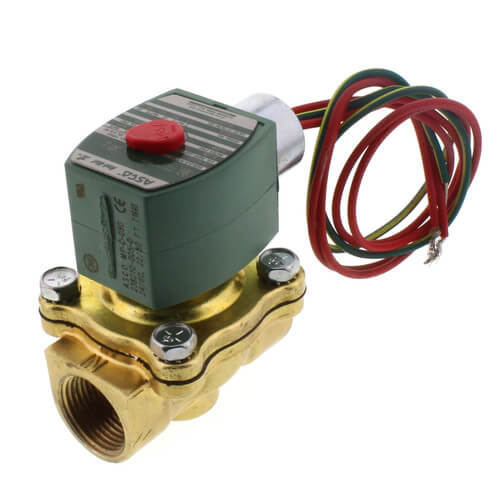

3/4" Normally Closed Solenoid Valve, 5 CV (24v)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$253.52 each
In Stock
Get 5 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (1)
This item replaces: 8210G9-24V
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Normally Closed
24V
3/4"
2-Way
Threaded Connection
5 Cv
Description
–
Note: This products voltage is representative of an AC voltage.
Features
Solenoid Enclosures
Features
- Wide range of pressure ratings, sizes, and resilient materials provide long service life and low internal leakage
- High Flow Valves for liquid, corrosive, and air/inert gas service
- Industrial applications include: Car wash, Laundry equipment, Air compressors, Industrial water control, Pumps
Solenoid Enclosures
- Standard: RedHat II - Watertight, Types 1, 2, 3, 3S, 4, and 4X; RedHat - Type I.
- Optional: RedHat II - Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9; Red-Hat - Explosionproof and Watertight, Types 3, 4, 4X, 7, and 9. (To order, add prefix "EF" to catalog number, except Catalog Numbers 8210B057, 8210B058, and 8210B059, which are not available with Explosionproof enclosures.) See Optional Features Section for other available options.
Specs
–
| Voltage: | 24V |
|---|---|
| Connection Type: | Threaded |
| Size: | 3/4" |
| Flow Capacity (Cv): | 5 |
| Body Pattern: | 2-Way |
| Wattage: | 6.1 |
| Fluid Temperature Range: | 180 F Max |
| Features: | NEMA 4 NEMA 4X |
| Position: | Normally Closed |
| Flow type: | High Flow |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
Be the first to write a review.
Product Q&A
2 Questions2 Questions
Q: How can I find the (water) flow rating in GPM vs Pressure Drop for this (or any) Asko Valve? I have tried to understand their Website; they must eat nothing but Swiss Cheese (?)
Asked by Andy B 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe body of this valve has a 5 Cv flow coefficient. (GPM/Cv)² = pressure drop in PSI.
Was this review helpful to you?
Q: AC OR DC ?
Asked by RICARDO 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffSolenoid is 24 VAC.
Was this review helpful to you?
