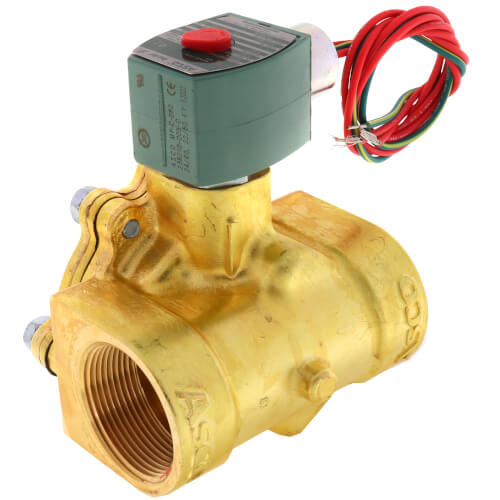

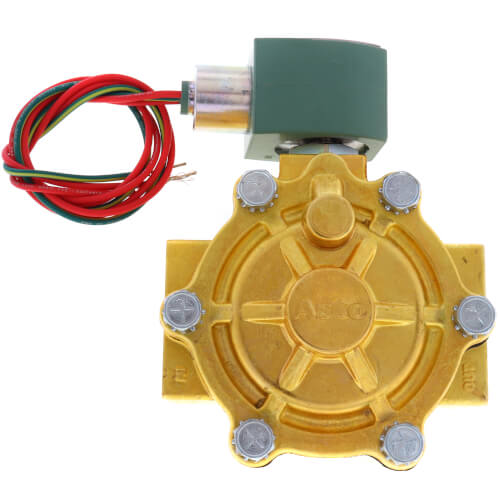

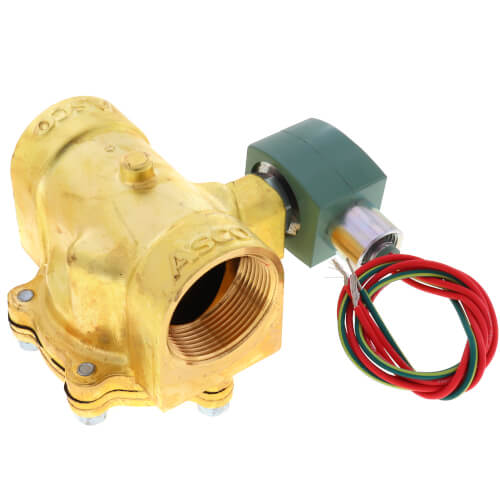

1-1/2" Normally Closed Solenoid Valve, 22.5 CV (24v)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$783.80 each
In Stock
Get 6 Tue, Jul 7
Order by today, receive Tuesday
This item replaces: 8210G22-24V
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Normally Closed
24V
1-1/2"
2-Way
Threaded Connection
22.5 Cv
Description
–
Features
- Wide range of pressure ratings, sizes, and resilient materials provide long service life and low internal leakage
- High Flow Valves for liquid, corrosive, and air/inert gas service
- Industrial applications include: Car wash, Laundry equipment, Air compressors, Industrial water control, Pumps
Solenoid Enclosures
- Standard: RedHat II - Watertight, Types 1, 2, 3, 3S, 4, and 4X; RedHat - Type I.
- Optional: RedHat II - Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9; Red-Hat - Explosionproof and Watertight, Types 3, 4, 4X, 7, and 9. (To order, add prefix "EF" to catalog number, except Catalog Numbers 8210B057, 8210B058, and 8210B059, which are not available with Explosionproof enclosures.) See Optional Features Section for other available options.
Specs
–
| Size: | 1-1/2" |
|---|---|
| Connection Type: | Threaded |
| Flow Capacity (Cv): | 22.5 |
| Voltage: | 24V |
| Body Pattern: | 2-Way |
| Wattage: | 6.1 |
| Max AC Water: | 150 |
| MAX AC LT. OIL: | 100 |
| Max AC Air: | 150 |
| Flow type: | High Flow |
| Position: | Normally Closed |
| Features: | NEMA 4X NEMA 4 |
