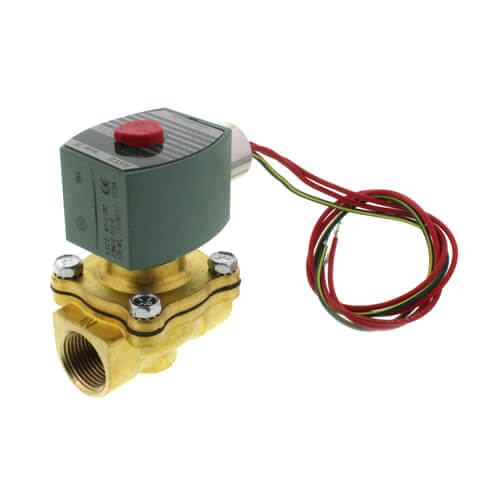

2" General Purpose Solenoid Valve (240v)

Brand:
Asco RedHat
SKU:
8210G100-240V
Rating:
(0)
Q&A:
(0)
2" General Purpose Solenoid Valve (240v)
Magnifying glass
Hover image to zoom
$1,497.29 each
In Stock
In Stock
Get 5 Tue, Oct 6
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Position
Normally Closed
Product Highlight: Voltage
240v
Product Highlight: Size
2"
Product Highlight: Body Pattern
2-Way
Product Highlight: Connection Type
Threaded Connection
Product Highlight: Flow Capacity (Cv)
43 Cv

Description

–


Features
  • Wide range of pressure ratings, sizes, and resilient materials provide long service life and low internal leakage
  • High Flow Valves for liquid, corrosive, and air/inert gas service
  • Industrial applications include: Car wash, Laundry equipment, Air compressors, Industrial water control, Pumps


Solenoid Enclosures
  • Standard: RedHat II - Watertight, Types 1, 2, 3, 3S, 4, and 4X; RedHat - Type I. Optional: RedHat II - Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9; Red-Hat - Explosionproof and Watertight, Types 3, 4, 4X, 7, and 9. (To order, add prefix "EF" to catalog number, except Catalog Numbers 8210B057, 8210B058, and 8210B059, which are not available with Explosionproof enclosures.) See Optional Features Section for other available options.

Specs

–
Size:

2"

Connection Type:

Threaded

Flow Capacity (Cv):

43

Voltage:

240v

Wattage:

6.1 (AC)

11.6 (DC)

Body Pattern:

2-Way

Max Fluid Temp:

150°F (DC)

180°F (AC)

Features:

NEMA 4X

NEMA 4

Flow type:

High Flow

Position:

Normally Closed

Thread Type:

Female

Thread Size:

2"

Material:

Brass

Pressure Rating:

150 psi (Air-Inert Gas - MAX AC)

90 psi (Lt. Oil @ 300 SSU - MAX AC)

125 psi (Water - MAX AC)

50 psi (Water - MAX DC)

50 psi (Light Oil @ 300 SSU - MAX DC)

50 psi (Air-Inert Gas - MAX DC)
