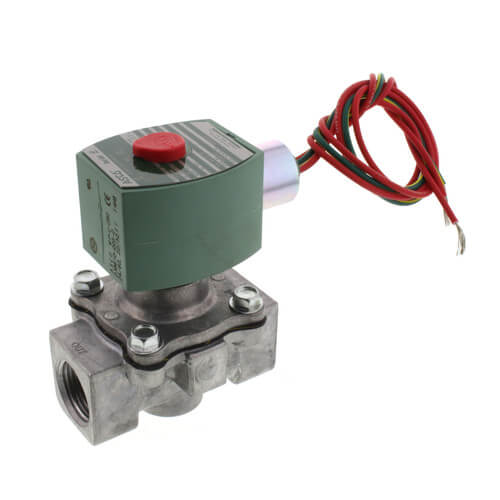

3/4" Aluminum Solenoid Air Valve, 247,500 BtuH Max (24v)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$275.40 each
In Stock
Get 1 Mon, Jun 15
Order by today, receive Monday
This item replaces: 8215G30-24V
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Normally Closed
24V
3/4"
2-Way
5.1 Cv
Description
–
Aluminum valves can be used in both double block and vent gas burners.
Features
Solenoid Enclosures
Features
- Lightweight, low-cost valves for air service
- Ideal for low pressure applications
- Provides high flow, Cv up to 138 (Kv 118)
- Air and vacuum service
Solenoid Enclosures
- Standard: RedHat II - Watertight, Types 1, 2, 3, 3S, 4, and 4X; RedHat - Type I.
- Optional: RedHat II - Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9; RedHat - Explosionproof and Raintight, Types 3, 7, and 9. (Except EF8215A40 and EF8215A90, which are suitable for Types 3 and 7 (C and D) only and have a T2B temperature rating code.)
Specs
–
| Capacity: | 247500 BTU |
|---|---|
| Size: | 3/4" |
| Voltage: | 24V |
| Position: | Normally Closed |
| Flow Capacity (Cv): | 5.1 |
| Flow type: | High Flow |
| Body Pattern: | 2-Way |
| Features: | NEMA 4 NEMA 4X |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Q&A
2 Questions2 Questions
Q: Does this have a 24 VAC or 24 VDC coil?
Asked by Wayne 8 years ago
Add your answer
Verified Reply- SupplyHouse StaffAccording to our supplier, it would be a 24 VAC Coil.
Was this review helpful to you?
Q: is this valve ac or dc
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis valve is available in both AC and DC rating.
Was this review helpful to you?
