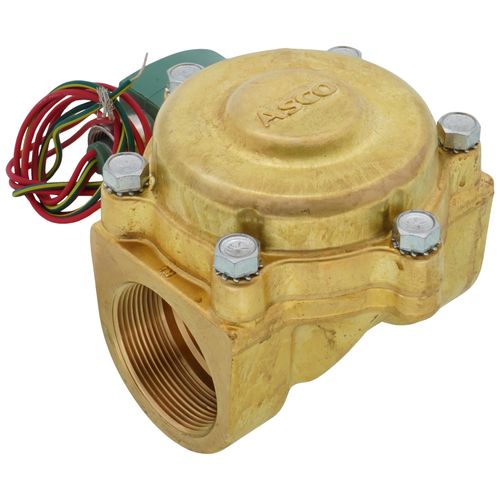

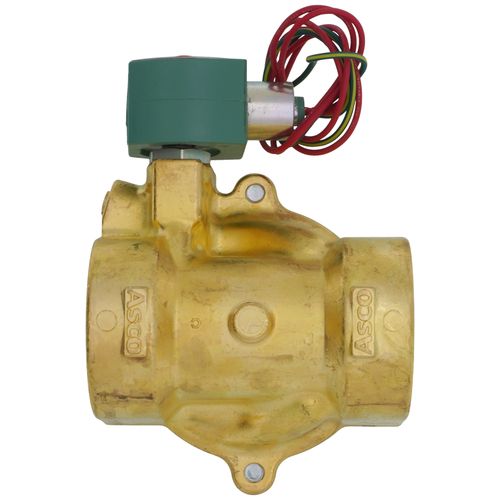

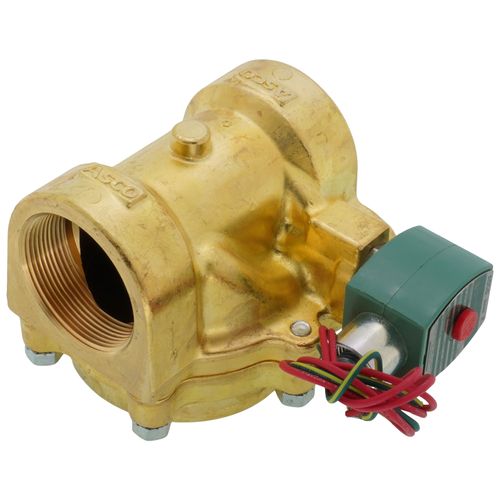

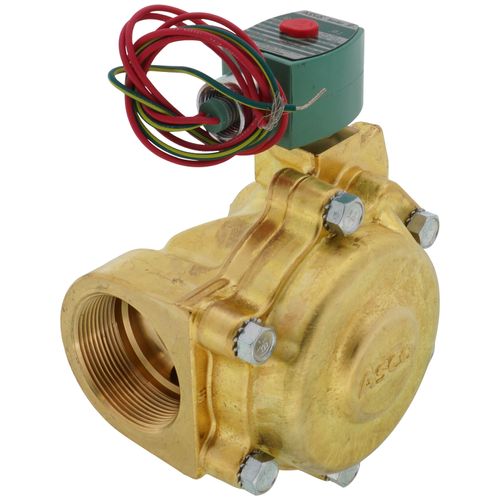

2" Slow Closing Solenoid Valve, 36 CV (120v)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$2,401.34 each
In Stock
Get 3 Thu, Jun 11
Order by today, receive Thursday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Normally Closed
120v
2"
36 Cv
6.1/F (AC), 22.6/F (DC) Watts
Brass
Description
–
Features
- Pilot operated, normally open or normally closed
- Snubber slows disc closing speed to protect system against water hammer damage more effectively than other techniques
- Pressure spike due to water hammer is reduced to a point eliminating the need for suppressors or other controls in most water systems
Solenoid Enclosures
- Standard: RedHat II - Watertight, Types 1, 2, 3, 3S, 4, and 4X; RedHat - Type I.
- Optional: RedHat II - Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9; RedHat - Explosionproof and Raintight, Types 3, 7, and 9.
Specs
–
| Application: | Heating |
|---|---|
| Size: | 2" |
| Voltage: | 120v |
| Position: | Normally Closed |
| Flow Capacity (Cv): | 36 |
| Flow type: | High Flow |
| Hertz: | 60 |
| Wattage: | 6.1/F (AC) 22.6/F (DC) |
| Pressure Differential: | 150 psi (Max AC) 125 psi (Max DC) 5 psi (Minimum) |
| Max Fluid Temp: | 180°F (AC) 150°F (DC) |
| Material: | Brass |
| Features: | Pilot Operated Slow Closing |
| Height: | 7-3/8" |
| Width: | 4-23/32" |
| Length: | 5-1/16" |
