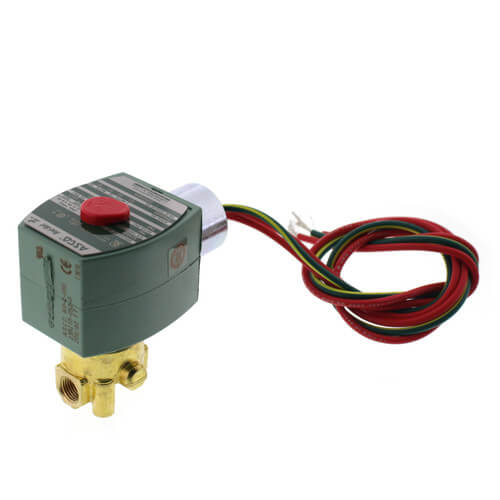

Description
Features
  • 208V
  • Reliable, proven design with high flows
  • Welded core tube provides higher pressure ratings
  • Small poppet valves for tight shutoff
  • Wide range of elastomers for specialty service
  • Mountable in any position
  • Tapped mounting holes in body standard
Read more
Manuals (1)
Specs
Size:
1/8"
Connection Type:
Threaded
Flow Capacity (Cv):
0.06
Voltage:
208v
Wattage:
10.6 (DC)
6.1 (AC)
Body Pattern:
2-Way
Max Fluid Temp:
180°F (AC)
180°F (DC)
Features:
NEMA 4X
Flow type:
High Flow
Position:
Normally Closed
Thread Type:
Female
Thread Size:
1/8"
Material:
Brass
Pressure Rating:
750 psi (Air-Inert Gas MAX AC)
725 psi (Lt. Oil @ 300 SSU MAX AC)
750 psi (Water MAX AC)
640 psi (Water - DC)
550 psi (Lt. Oil @ 300 SSU - DC)
750 psi (Air-Inert Gas MAX - DC)
×
