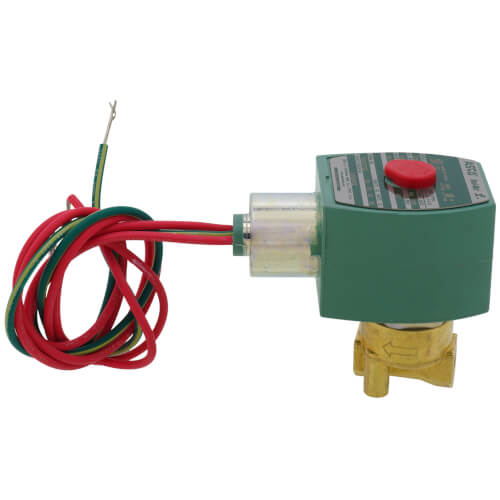

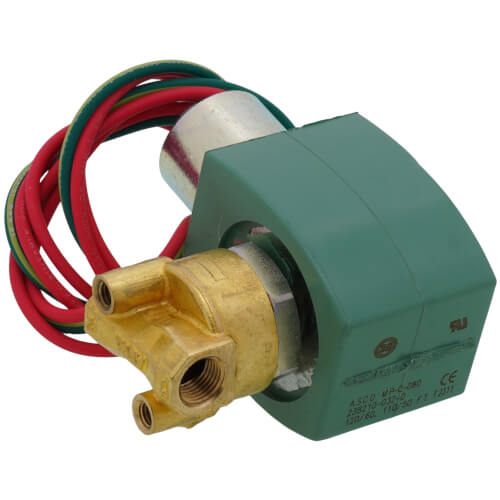

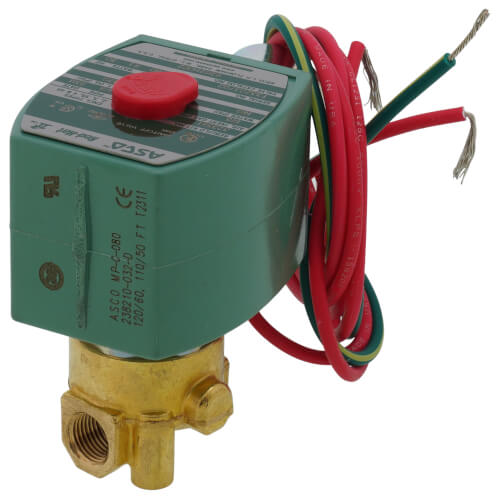

1/8" Normally Closed Solenoid Valve (120v)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$95.49 each
In Stock
Get 10 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (1)
This item replaces: 8262G2-120VAC, 8262G002
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Normally Closed
120v
1/8"
2-Way
Threaded Connection
0.34 Cv
Description
–
Features
- Reliable, proven design with high flows
- Small poppet valves for tight shutoff
- Wide range of elastomers for specialty service
- Mountable in any position
- Brass and stainless steel constructions
- Nominal Ambient Temp: Ranges
AC: 32°F to 125°F (0°C to 52°C)
DC: 32°F to 104°F (0°C to 40°C)
Solenoid Enclosures- Standard: Watertight, Types 1, 2, 3, 3S, 4, and 4X
- Optional: Explosion-proof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9
Specs
–
| Application: | Plumbing |
|---|---|
| Size: | 1/8" |
| Connection Type: | Threaded |
| Voltage: | 120v |
| Flow Capacity (Cv): | 0.34 |
| Wattage: | 10.6 (DC) 6.1 (AC) |
| Body Pattern: | 2-Way |
| Max Fluid Temp: | 180°F (AC) 120°F (DC) |
| Features: | NEMA 4X |
| Flow type: | High Flow |
| Position: | Normally Closed |
| Thread Type: | Female |
| Thread Size: | 1/8" |
| Material: | Brass |
| Ambient Temperature: | 32°F to 125°F (AC) 32°F to 104°F (DC) |
| Pressure Rating: | 140 psi (Lt. Oil @ 300 SSU - MAX AC) 155 psi (Air-Inert Gas - MAX AC) 180 psi (Water - MAX AC) 80 psi (Lt. Oil @ 300 SSU - MAX DC) 80 psi (Water - MAX DC) 80 psi (Air-Inert Gas - MAX DC) |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 1 review
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
Nice product
I installed this solenoid valve in the pressure feed line to my oil furnace burner head. It is fed through a delay timer circuit providing smooth ignition and very fast shutdown. Also prevents after burn dripping and high emissions during those phases. Works great so far, only been in service for 2 weeks.
Mr Fixit.
Portland OR
13 years ago
Verified Buyer
