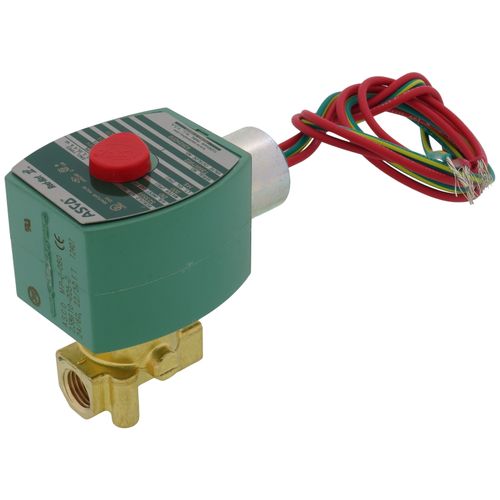

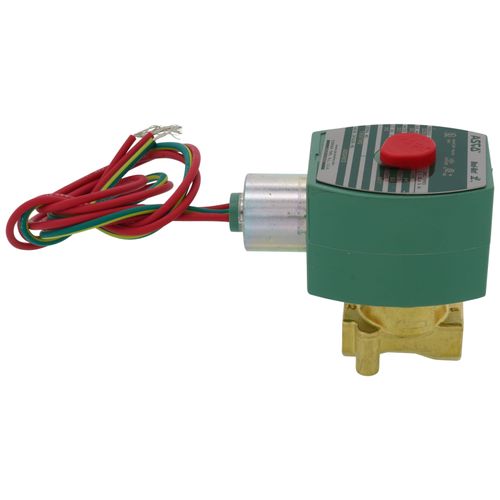

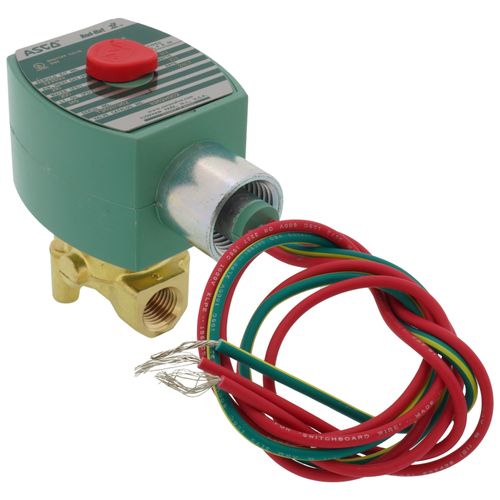

1/4" Normally Closed Solenoid Valve (24V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$120.66 each
In Stock
Get 3 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (2)
This item replaces: 8262G202-24V
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Normally Closed
24V
1/4"
2-Way
Threaded Connection
0.52 Cv
Description
–
Features
Solenoid Enclosures
- Welded core tube provides higher pressure ratings
- Reliable, proven design with high flows
- Small poppet valves for tight shutoff
- Wide range of elastomers for specialty service applications
- Mountable in any position
- Tapped mounting holes in body standard
- Nominal Ambient Temp Ranges
- AC: -13°F to 131°F
- DC: -13°F to 131°F (The nominal limitation of 32°F (0°C) is advisable for any valve that might contain moisture (water vapor)
Solenoid Enclosures
- Standard: Watertight, Types 1, 2, 3, 3S, 4, and 4X
- Optional: Explosion-proof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9
Specs
–
| Size: | 1/4" |
|---|---|
| Connection Type: | Threaded |
| Flow Capacity (Cv): | 0.52 |
| Voltage: | 24V |
| Wattage: | 11.6 (DC) 10.1 (AC) |
| Body Pattern: | 2-Way |
| Max Fluid Temp: | 180°F (AC) 180°F (DC) |
| Flow type: | High Flow |
| Position: | Normally Closed |
| Thread Type: | Female |
| Material: | Brass |
| Pressure Rating: | 210 psi (Air-Inert Gas - MAX AC) 200 psi (Water - MAX AC) 145 psi (Lt. Oil @ 300 SSU - MAX AC) 55 psi (Air-Inert Gas - MAX DC) 54 psi (Water - MAX DC) 54 psi (Lt. Oil @ 300 SSU - MAX DC) |
