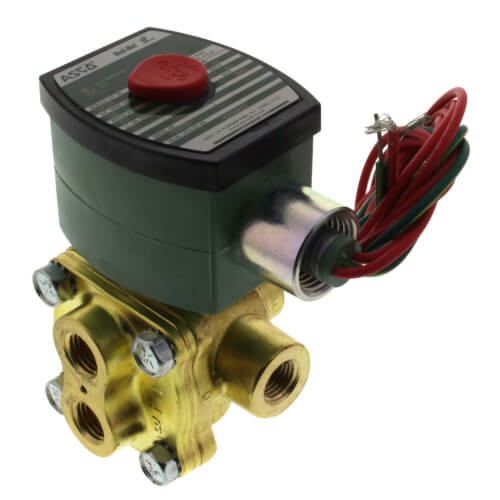

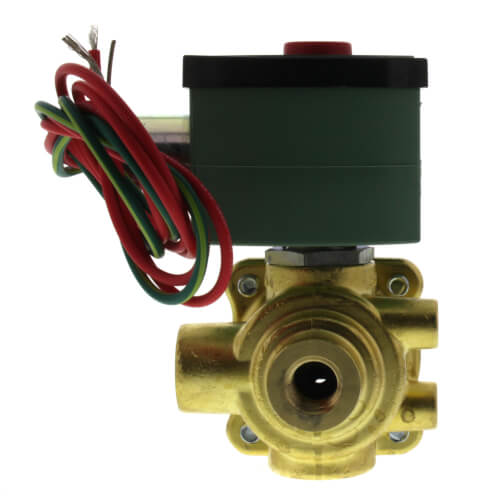

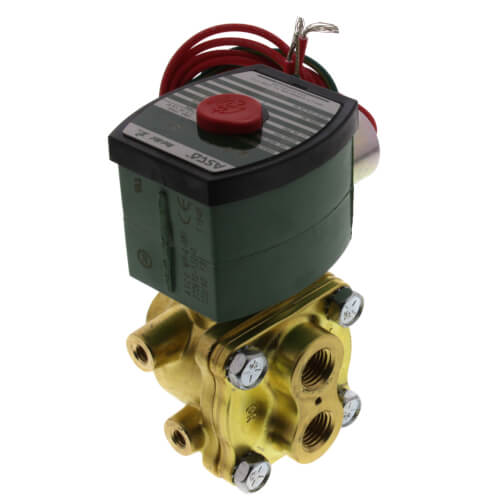

1/4" General Purpose Solenoid Valve, .7 CV (120v)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$709.88 each
In Stock
Get 4 Thu, Jun 25
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
120v
1/4"
4-Way
Threaded Connection
0.7 Cv
20.1 (AC) Watts
Description
–
Features
- Direct acting operation and high flow construction
- Direct acting, high flow slide-style valve
- Optional flow control regulates cylinder speed independently, in either direction
- Mechanical detent on dual solenoids holds last position, even after loss of electric power, pneumatics or pressure
- No Minimum Operating Pressure Differential required to shift valve
- Dual solenoid operation: solenoid may be energized momentarily (1/10 second) or continuously
- Mountable in any position
Specs
–
| Application: | Plumbing |
|---|---|
| Size: | 1/4" |
| Connection Type: | Threaded |
| Voltage: | 120v |
| Flow Capacity (Cv): | 0.7 |
| Wattage: | 20.1 (AC) |
| Body Pattern: | 4-Way |
| Max Fluid Temp: | 160°F (AC) |
| Features: | NEMA 4X |
| Flow type: | High Flow |
| Thread Type: | Female |
| Thread Size: | 1/4" |
| Material: | Brass |
| Ambient Temperature: | 32°F to 104°F (DC) 32°F to 125°F (AC) |
| Pressure Rating: | 100 psi (Water - MAX AC) 125 psi (Air-Inert Gas - MAX AC) 100 psi (Lt. Oil @ 300 SSU - MAX AC) |
