Description

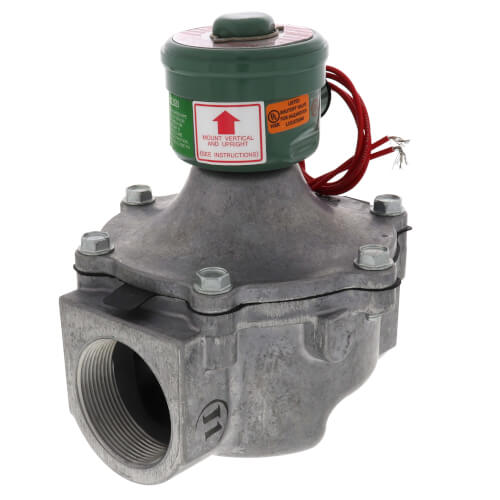

Series 8215 Solenoid Valves feature 2-way normally closed operation for gas service. They are explosion proof and designed to handle low pressure city gas. Control voltage is 80 to 90 volts DC or 120/60 volts AC.

Features:
  • Lightweight, low-cost valves for air service
  • Ideal for low pressure applications
  • Provides high flow, Cv up to 138 (Kv 118)
  • Air and vacuum service
Hide Description
Manuals (1)
Specs
Size:

2"

Connection Type:

Threaded

Flow Capacity (Cv):

60

Voltage:

120v

Max Pressure (PSI):

25

Body Pattern:

2-Way

Max Temp (F):

125°F

Material:

Aluminum

Capacity:

3251000 BTU

Power Requirements:

120/60 VAC

Position:

Normally Closed

Wattage:

15.4

×
