Proof of Closure 2-Way General Purpose Oil Hydramotor Actuator with Auxiliary Switch, 5.5 Cv (120V)

The HOV1(B) is a push-type, self-contained, fuel oil valve with a single, quick-opening, stem-guided seat. This 2-way normally closed, bronze safety shutoff valve features a spring-loaded stem which, upon power interruption, drives the PTFE seat firmly closed within one second.

The electrohydraulic actuator can be purchased separately, and consists of a pump applying pressure to a piston pushing the valve stem. Its power unit is immersed in oil and sealed. The HOV1(B) assembly, which consists of an actuator and the valve body mounted together by users, requires no adjustment or service. Stroke is controlled by a travel limit switch and electromagnetic relief valve. The unit rotates 360º for ease of installation. Two-wire connection via 1/2 inch threaded conduit terminal box is standard.

The HOV1(B) comes standard with valve seal overtravel and electrical interlock proof of closure switch. An optional auxiliary switch is also available.

Specifications:

• Opening Time: 9 Seconds Max.
• Closing Time: 1 Second Max.
• Ambient Temperature:-40F to 150F (-40C to 66C)
• Fluid Temperature: 267F Max. (131C)
• Body/Trim: Bronze, 300# Screw
• Seal Material: PTFE
• Port Size: 13/32"

Installation: HO(B) actuator mounts in any position directly to a V2 valve body with 3 set screws.

Approvals:

• UL listed to standard 429 “Electrically Operated Valves”, Guide YIOZ, File MP932
• FM Approved to Class 7400 “Liquid and Gas Safety Shutoff Valves”
• CSA Certified to “Electrically Operated Valves”, CSA Std C22.2 No. 139, File 109157

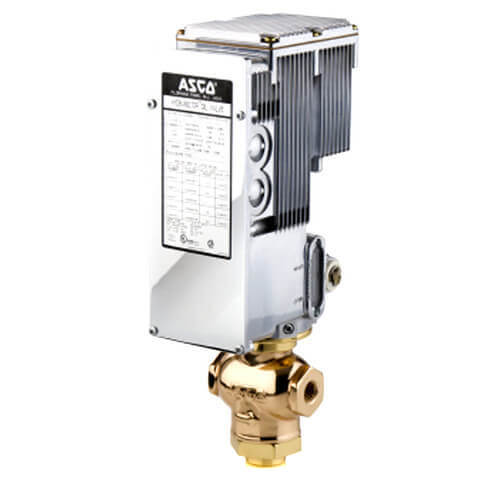

Note: Image may not be actual representation of item.
