Combustion Normally Closed 2-Way Gas Shutoff Valve Hydramotor Actuator, 3" Pipe, 125 Cv (120V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$5,475.99 each
Backorder
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
120v
2-Way
125 Cv
Normally Closed
Description
–

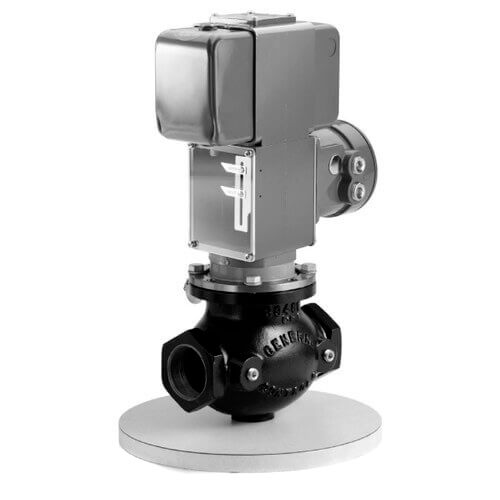

The normally closed H118 is a combination Hydramotor
actuator and safety shutoff/control gas valve. It is used
for commercial and industrial burners in applications
such as furnaces, dryers, dehydrators, conversion burners
and heaters.
The cast iron, globe-type valve body features a soft synthetic seat and integral heavy-duty return spring for tight and certain closure in one second or less upon current interruption.
The self contained, hermetically sealed, pull-type electro-hydraulic actuator consists of a motor/pump unit immersed in oil, reducing wear and provides highly reliable operation.
Specifications:
Note: Image may not be actual representation of item.
The cast iron, globe-type valve body features a soft synthetic seat and integral heavy-duty return spring for tight and certain closure in one second or less upon current interruption.
The self contained, hermetically sealed, pull-type electro-hydraulic actuator consists of a motor/pump unit immersed in oil, reducing wear and provides highly reliable operation.
Specifications:
- Fluid: Fuel gas
- Opening Time: 28 second max.
- Closing Time: 1 second max.
- Enclosure: Type 1 General Purpose standard
- Type 4/7 Watertight/Explosion proof optional
- Ambient Temperature: -40F to 150F (-40C to 66C)
- Body Class: Cast Iron, 1" to 3" - 250# screw, 4" - 125# flange
- Pipe Taps: 1/4" upstream & downstream taps for routine leak testing
Note: Image may not be actual representation of item.
Specs
–
| Product Type: | Electrohydraulic Linear Actuators |
|---|---|
| Voltage: | 120v |
| Position: | Normally Closed |
| Time to Open: | 28 Seconds Max |
| Time to Close: | 1 Second Max |
| Max Fluid Temp: | 150°F |
| Differential (PSI): | 15 |
| Pipe Size: | 3" |
| Flow Capacity (Cv): | 125 |
| Body Pattern: | 2-Way |
