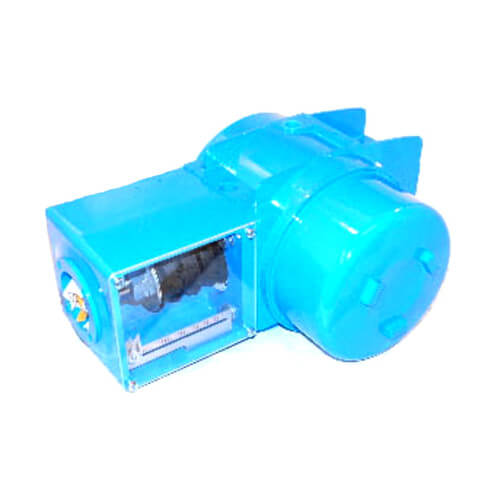

Proof of Closure Hydramotor Actuator (120V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$16,484.54 each
In Stock
Get 2 Thu, Jun 11
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
120v
Description
–
Hydramotor valves consist of three components: an actuator with mounting yoke and a valve body.
H30 actuators pull when energizer and extend, powered by an internal return spring, when deenergized, providing ON-OFF control of valves. The operating mechanism is completely immersed in oil, eliminating usual maintenance and service.
When the actuator terminals are powered, relief valves close and an electric motor-driven pump applies hydraulic pressure to a spring-loaded piston. when the stem reaches full travel, a limit switch opens the pump motor circuit. The relief valves remanin closed, holding the stem in its extended position until the actuator is deenergized, opening the relief valves and retracting the spring-loaded piston.
When the actuator is held in its energized position, the motor may restart intermittently to maintain proper pressure against the piston.
Note: Image may not be actual representation of item.
H30 actuators pull when energizer and extend, powered by an internal return spring, when deenergized, providing ON-OFF control of valves. The operating mechanism is completely immersed in oil, eliminating usual maintenance and service.
When the actuator terminals are powered, relief valves close and an electric motor-driven pump applies hydraulic pressure to a spring-loaded piston. when the stem reaches full travel, a limit switch opens the pump motor circuit. The relief valves remanin closed, holding the stem in its extended position until the actuator is deenergized, opening the relief valves and retracting the spring-loaded piston.
When the actuator is held in its energized position, the motor may restart intermittently to maintain proper pressure against the piston.
Note: Image may not be actual representation of item.
Specs
–
| Product Type: | Electrohydraulic Linear Actuators |
|---|---|
| Voltage: | 120v |
