Description

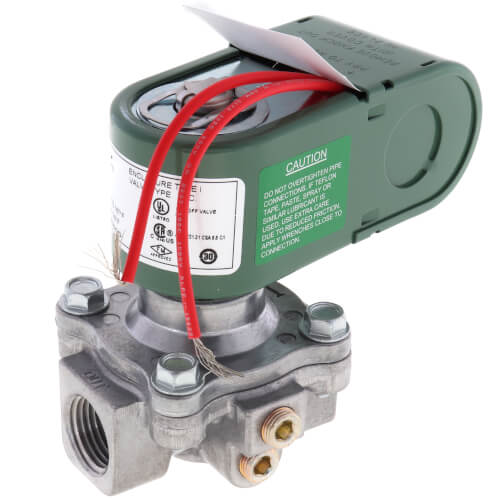

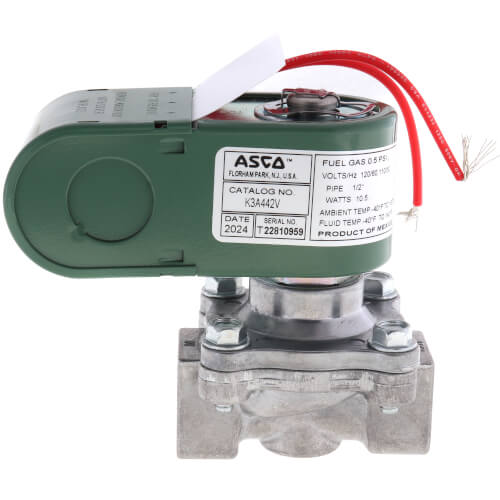

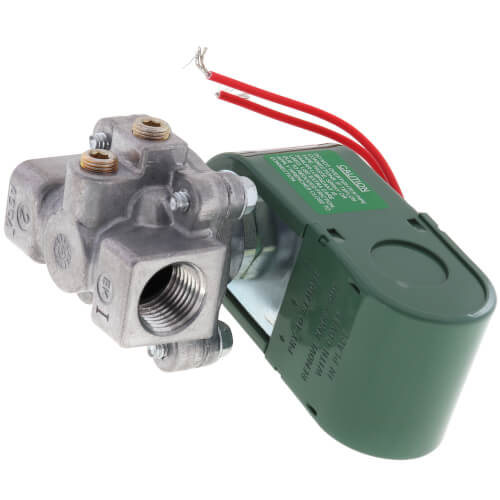

ASCO Valve's Fuel, Gas & Oil solenoid valves handle combustion system pilot & main line fuel shutoff & control needs. Our Fuel, Gas & Oli solenoid valves are available in 2-way normally closed, normally open, manual reset, and 3-way diversion. ASCO valves are available in brass, aluminum, and stainless steel. Features include junction box, pipe taps, visual indication, proof of closure, leading agency approvals, and pipe connections from 1/8" to 3". Most valves are rated for -40ºF service for outdoor installation in frigid climates.

Features:
  • 2-way normally closed operation
  • Die-cast aluminum bodies
  • For positive shutoff on pilot or main gas lines of commercial and industrial gas burners
  • Valves provided with 1/8" NPT upstream and dowstream pipe tap with plug for routine testing
  • Suitable for ambient temperatures up to 175°F

Construction:
  • Body: Aluminum
  • Seals and Disc: NBR
  • Washer: 302 Stainless Steel
  • Core Tube: 305 Stainless Steel
  • Core and Plugnut: 430F Stainless Steel
  • Core Guide: CA
  • Springs: 302F Stainless Steel
  • Shading Coil: Copper
  • Body Gasket: Cork
  • Pipe Plug: Zinc-Plated Steel

Solenoid Enclosures:
Standard: Type 1 General Purpose Junction Box Housing with two 7/8" knock-outs.

Valve Response Time:
  • Opening Time: Less than 1 second
  • Closing Time: Less than 1 second

Hide Description
Specs
Size:

1/2"

Connection Type:

Threaded

Flow Capacity (Cv):

6

Voltage:

120v

Max Pressure (PSI):

25

Body Pattern:

2-Way

Wattage:

10.5

Material:

Aluminum

Power Requirements:

120/60 VAC

Capacity:

350000 BTU

Application:

Plumbing

Voltage:

120v

Connection Type:

Threaded

Flow type:

High Flow

Ambient Temperature:

32°F to 125°F (AC)

32°F to 104°F (DC)

×
