Description

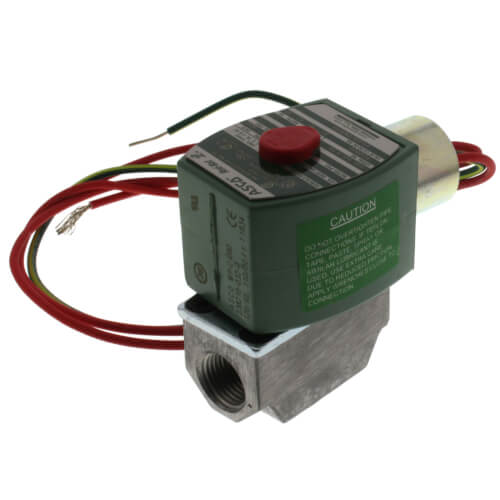

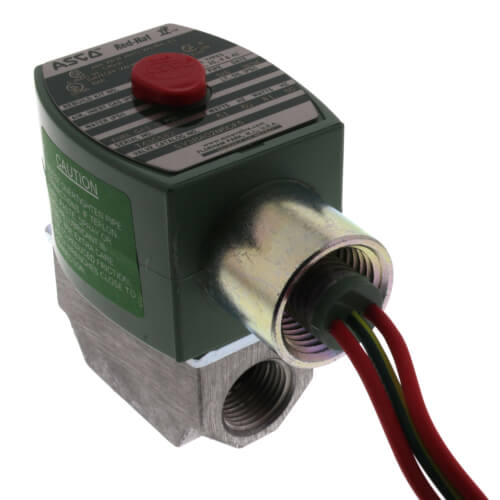

ASCO Valve's Fuel, Gas & Oil solenoid valves handle combustion system pilot & main line fuel shutoff & control needs. Our Fuel, Gas & Oli solenoid valves are available in 2-way normally closed, normally open, manual reset, and 3-way diversion. ASCO valves are available in brass, aluminum, and stainless steel. Features include junction box, pipe taps, visual indication, proof of closure, leading agency approvals, and pipe connections from 1/8" to 3". Most valves are rated for -40ºF service for outdoor installation in frigid climates.

Features:
  • 2-way normally closed operation
  • For gas pilot control of commercial and industrial gas burners
  • Direct lift with resilient soft seating for tight shutoff
  • Valves provided with 1/8" NPT downstream pipe tap with plug for routine testing
  • Suitable for ambient temperatures up to 175°F


Construction:
  • Body: Aluminum
  • Seals and Disc: NBR
  • Core Tube: 305 Stainless Steel
  • Core and Plugnut: 430F Stainless Steel
  • Springs: 17-7PH
  • Shading Coil: Copper
  • Pipe Plug: Zinc-Plated Steel

Hide Description
Specs
Capacity:

64400 BTU

Size:

3/8"

Connection Type:

Threaded

Flow Capacity (Cv):

1.2

Voltage:

120v

Body Pattern:

2-Way

Wattage:

6.1

Max Fluid Temp:

125°F (DC)

Flow type:

High Flow

Position:

Normally Closed

Thread Type:

Female

Thread Size:

1/4"

Material:

Aluminum

Application:

Plumbing

Voltage:

120v

Connection Type:

Threaded

Flow type:

High Flow

Ambient Temperature:

32°F to 125°F (AC)

32°F to 104°F (DC)

×
