ASP-MAXO-UNI Orange Univolt Mini Split Condensate Pump Kit (Above Ceiling or Inside Line Hide Install) (100-250V)

Name: ASP-MAXO-UNI Orange Univolt Mini Split Condensate Pump Kit (Above Ceiling or Inside Line Hide Install) (100-250V)
Brand: Aspen Pumps
SKU: 83919
Price: 353.8 USD
Availability: OutOfStock

Brand:

Aspen Pumps

SKU:

83919

Rating:

(0)

Q&A:

(0)

ASP-MAXO-UNI Orange Univolt Mini Split Condensate Pump Kit (Above Ceiling or Inside Line Hide Install) (100-250V)

Hover image to zoom

83919 has been discontinued

Discontinued October 18, 2025

This product was discontinued because the part number was changed by the manufacturer. No modifications were made to the replacement product.

MANUALS (3)

Submittal Sheet

User Guide

Principles of Operation

Submittal Sheet

User Guide

Principles of Operation

This item replaces: ASP-MAXO-UNI, ASP-MAXOEM-115

Direct Replacement:

ASP-MAXO-UNI Orange Univolt Mini Split Condensate Pump Kit (Above Ceiling or Inside Line Hide Install) (100-250V)

Brand:

Aspen Pumps

SKU:A83919

(0)

VIEW REPLACEMENT

Product Highlights

–

100-250v

8.9 MAX GPM

15 Amps

16 Watts

104°F Max Temp

Description

–

ASP-MAXO-UNI Orange Univolt Mini Split Condensate Pump Kit (Above Ceiling or Inside Line Hide Install) (100-250V)

Features

Self Priming
Pump installs remotely above ceiling or inside lineset cover
Pan mount and inline style reservoir included
Modular terminals for fast connection
Gravity Inlet
Fully potted electronics*
3A NO/NC dry contacts rated @ 5A inductive at 230V AC
Duty Cycle: Maxi - 50% 5 mins on / 5 mins off

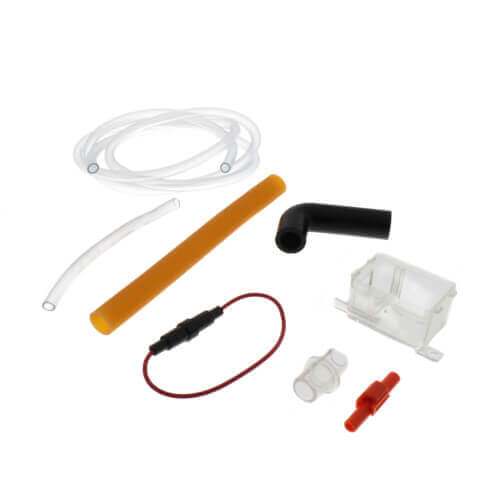

Includes:

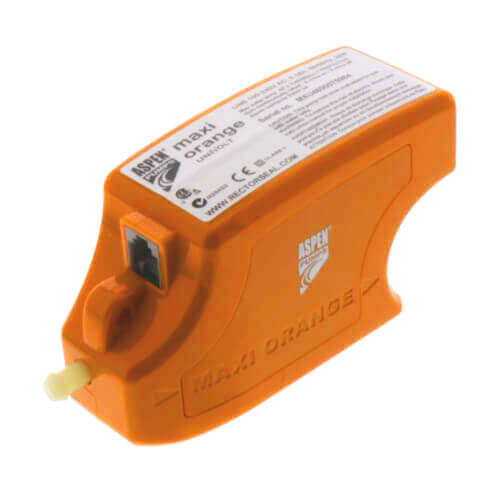

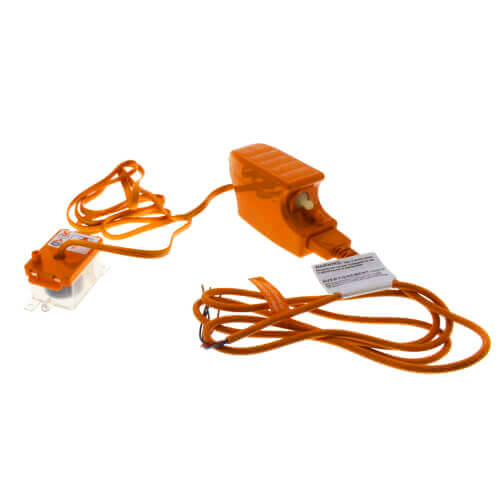

Pump Assembly
Inline Reservoir
Submersible Reservoir
5'x1/4" i.d. Vinyl Discharge Tube
Modular 5' Power Cable
6"x1/4" i.d. Vinyl Breather Tube
Drain Hose Adaptor
Inline Fuse
Cable Ties (6)
Self Adhesive Velcro
Strips (2)
8"x5/8" i.d. Inlet Tube
Installation Manual
Anti-Siphon Device
90° Elbow

Specs

–

Cord Length:	5'
Product Type:	Condensate Pump
Max Flow (GPM):	8.9
BTU (Max):	157000
Max Head (Ft):	49
Voltage:	100-250v
Amperage:	15
Wattage:	16
Max Temp (F):	104°F
