Description

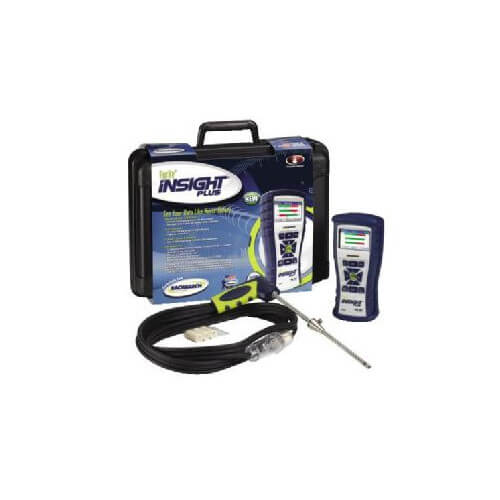

Fyrite INSIGHT Plus Basic LL, includes instrument w/Long-life O2 sensor, B-Smart® CO sensor, probe, rubber boot, filters and hard case.

The Fyrite INSIGHT Plus is Bacharach's next-generation residential and commercial combustion analyzer featuring unique new features and intuitive operation. The full-color display with dynamic info-graphing provides an innovative way to easily and instantly read your combustion results. The INSIGHT Plus also features an on-screen "hotspot finder" to detect the optimal measurement site, up to 10 user-selectable fuels and B-Smart technology to enable in-field sensor replacement with pre-calibrated CO sensors.

Its internal memory is capable of storing up to 100 complete records, which can also be downloaded to a PC or printed via an infrared printer. Additional enhancements also include a B-Smart CO sensor (0-4,000 ppm) with integral NOx filter and an optional long-life Oxygen sensor.

This 5-in-1, American-made steady-state combustion analyzer includes: a room air CO test instrument, a flue gas CO tester, dual channel digital thermometer (up to 999°F), and a digital manometer (which measures draft, gas pressure, ESP, and up to +/- 40 INWC).

INSIGHT Plus Features
  • 5-Tools-In-1 Instrument!
  • Combustion and efficiency analyzer - 9 programmed (10 for EU version) + 2 custom fuels
  • Room air CO test instrument
  • Flue gas CO tester (CO air free)
  • Dual channel digital thermometer (Up to 999°F)
  • Digital manometer (draft, gas pressure, ESP, up to 28 WC")
  • Full-Color Display with Dynamic Info-Graphing
  • Backlight, customizable readout and zoom feature
  • New B-Smart Technology
  • Self calibration
  • Easy access to sensors
  • User Diagnostics
  • Long-life O2 (3 year) sensor available
  • CO sensor with integral NOx filter
  • O2 and sensor life indicator
  • Calibration reminders
  • Fyrite User Software (PC) and Reporting Package (Optional)
  • Customize Printed Reports with Your Company Name and Logo
  • Software Updates
  • Test Data Storage
  • Intuitive Setup Screens and Color Graphics Provide an Easy Way to See Your Results.
Warranty Registration Form
Read more
Manuals (2)
Specs
Application:
Combustion Analyzer
Model:
Fyrite INSIGHT Plus
Measures:
Carbon Monoxide (CO)
Oxygen (O2)
Warranty:
2 Years
Measures:
Flue Gas Temperature
Draft/Differential Pressure
Ambient Air Temperature
Display:
LCD
Oxygen:
0 to 20.9%
Carbon Monoxide:
0 to 4000 ppm
Ambient Temperature:
-4° to 600°F
Flue Gas Temperature (F):
-4° to 1200°F
Draft/Differential Pressure:
-40 to +40" WC
Combustion Efficiency:
0.1 to 100%
Carbon Dioxide:
0.1 to a fuel dependent max. value (%)
Carbon Monoxide (Air Free):
0 to 9999 ppm
Excess Air:
0 to 250%
Selectable Fuels:
Natural Gas
Propane
Coal
Wood
Kerosene
Oil #2
Oil #4
Oil #6
B5
Battery Type:
4 Disposable AA Alkaline Batteries
Battery Life:
15 Hours (minimum)
Size (H x W x D):
8" x 3.6" x 2.3"
×
