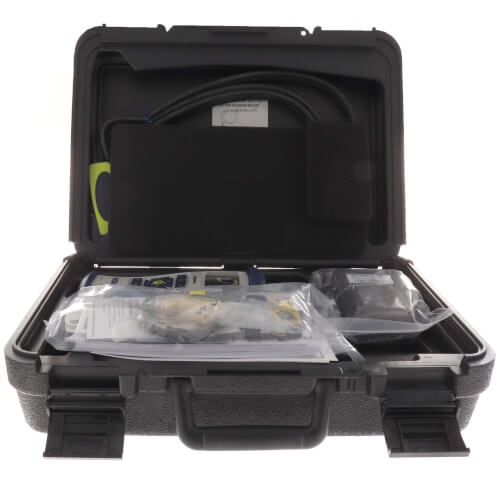

Fyrite INSIGHT Plus Reporting Kit LL, includes instrument w/Long-life O2 sensor, B-Smart CO sensor, probe, rubber boot, printer, USB cable, FUS Software, filters and hard case

The Fyrite INSIGHT Plus is Bacharach's next-generation residential and commercial combustion analyzer featuring unique new features and intuitive operation. The full-color display with dynamic info-graphing provides an innovative way to easily and instantly read your combustion results. The INSIGHT Plus also features an on-screen "hotspot finder" to detect the optimal measurement site, up to 10 user-selectable fuels and B-Smart technology to enable in-field sensor replacement with pre-calibrated CO sensors.

Its internal memory is capable of storing up to 100 complete records, which can also be downloaded to a PC or printed via an infrared printer. Additional enhancements also include a B-Smart CO sensor (0-4,000 ppm) with integral NOx filter and an optional long-life Oxygen sensor.

This 5-in-1, American-made steady-state combustion analyzer includes: a room air CO test instrument, a flue gas CO tester, dual channel digital thermometer (up to 999°F), and a digital manometer (which measures draft, gas pressure, ESP, and up to +/- 40 INWC).

INSIGHT Plus Features
  • 5-Tools-In-1 Instrument!
  • Combustion and efficiency analyzer - 9 programmed (10 for EU version) + 2 custom fuels
  • Room air CO test instrument
  • Flue gas CO tester (CO air free)
  • Dual channel digital thermometer (Up to 999°F)
  • Digital manometer (draft, gas pressure, ESP, up to 28 WC")
  • Full-Color Display with Dynamic Info-Graphing
  • Backlight, customizable readout and zoom feature
  • New B-Smart Technology
  • Self calibration
  • Easy access to sensors
  • User Diagnostics
  • Long-life O2 (3 year) sensor available
  • CO sensor with integral NOx filter
  • O2 and sensor life indicator
  • Calibration reminders
  • Fyrite User Software (PC) and Reporting Package (Optional)
  • Customize Printed Reports with Your Company Name and Logo
  • Software Updates
  • Test Data Storage
  • Intuitive Setup Screens and Color Graphics Provide an Easy Way to See Your Results.
Warranty Registration Form
Hide Description
Manuals (2)

Combustion Analyzer


Fyrite INSIGHT Plus


Carbon Monoxide (CO)

Oxygen (O2)


2 Years


Flue Gas Temperature

Draft/Differential Pressure

Ambient Air Temperature




0 to 20.9%

Carbon Monoxide:

0 to 4000 ppm

Ambient Temperature:

-4° to 600°F

Flue Gas Temperature (F):

-4° to 1200°F

Draft/Differential Pressure:

-40 to +40" WC

Combustion Efficiency:

0.1 to 100%

Carbon Dioxide:

0.1 to a fuel dependent max. value (%)

Carbon Monoxide (Air Free):

0 to 9999 ppm

Excess Air:

0 to 250%

Selectable Fuels:

Natural Gas





Oil #2

Oil #4

Oil #6


Battery Type:

4 Disposable AA Alkaline Batteries

Battery Life:

15 Hours (minimum)

Size (H x W x D):

8" x 3.6" x 2.3"
