Multi Voltage Relay Module, 24Vac/Vdc, 120V, SPDT

Multi Voltage Relay Module, 24Vac/Vdc, 120V, SPDT

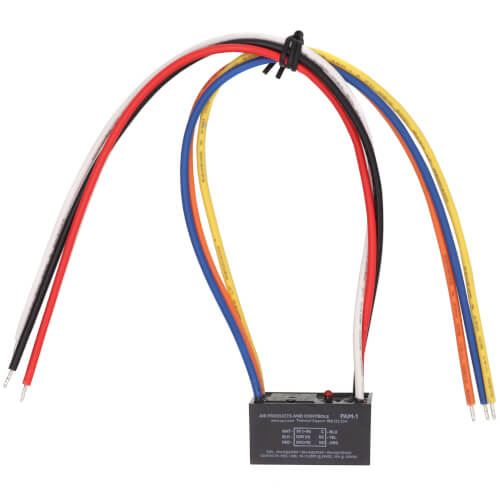

PAM-1: Single SPDT relay with LED, double-sided adhesive tape, mounting screw, 12” (30.48 cm) leads, and six wire nuts.

Air Products & Controls, Inc. PAM-1 MultiVoltage Relay Modules are encapsulated multi-voltage devices. The PAM-1 relay provides 10.0 Amp Form-C contacts and may be energized by one of three input voltages: 24 VAC, 24 VDC, or 115 VAC.

A red LED is provided on both models. When illuminated, it indicates the relay coil is energized.

Model may be mounted by using the double-sided adhesive tape, the self-drilling screw, or by placing loosely in a backbox.

PAM-1 Relay Modules are ideal for applications where remote relays are required for control or status feedback. They are suitable for use with HVAC, temperature control, fire alarm, security, energy management, and lighting control systems.

Power requirements: 0.015 Amps per position @ 24 VDC, 24 VAC, 115 VAC

Coil Voltages:12VDC, 24VDC

Ambient Temperature Range: -58°F to 185°F (-50°C to 85°C).

Agency Listings and Approvals:

UL Listed: S3403

MEA: 73-92-E, Volume XXI

CSFM: 7300-1004:101
