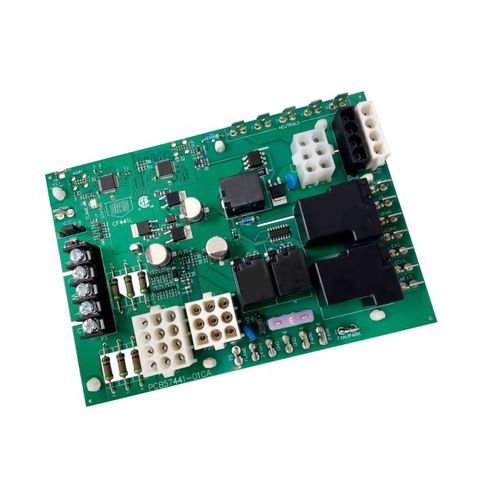

Furnace Control Board, CF441L-1C
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
Description
The CF441L is a 24VAC Single-Stage Integrated Furnace Control which utilizes advanced microprocessor design to provide safety monitoring and precise timing of operation sequences.
The CF441L meets the latest CSA C22.2 No. 60730-2-5-14 / ANSI Z21.20-2014 standards.
Features:
- Streamlines installation and servicing with multi-pin connectors for harness adapter free
- connections
- Low-cost replacement
- Field configurable timings for Heat Blower Off Delay with jumper selection
- Tri-Color Status LED and Flame Status LED to aid with diagnostics and troubleshooting
Specifications:
- Input Voltage: Control: 18-30 VAC, 50/60 Hz
- Gas Valve Contact Rating: 2.5 A @ 24 VAC
- Inducer Contact Rating: 5 A @ 120 VAC
- Heat / Cool Blower Contact Rating: 20 A @ 120 VAC
- Igniter Contact Rating: 5 A @ 120 VAC
- Operating Temperature: -40F to +176F (-40C to +80C)
- Moisture Resistance: Conformal coated to operate non-condensing to 95% RH
Replaces Model Numbers:
Lennox: 56L8301, 56L84, 63K89, 69M08, 69M0801, 75H17, 75M17, 78M47, 12L6901, 17W70-01, 17W70, 24L85, 24L8501, 32M88, 32M8801, 56L83, 100973-01, 100973-02, 103085-01, 103085-02, 103085-03, 10M93, 10M9301, 12L69, 81W03, 81W03-01, 81W11, 83M00, 94W83, 97L48, 97L4801, LB-109531A, LB-109531B, Y7761, Y7761-01, Y9894
White Rogers: 21D83M-843, 50A62-120, 50A62-121, 50A62-820, 50A65-120, 50A65-121, 50A66-122, 50A66-123
ICM: ICM2813
Specs
| Product Type: | Furnace Control Control Board |
|---|---|
| Operating Temp Range: | -40° to 176°F |
| Voltage: | 18 to 30 Vac |
| Hertz: | 50/60 |
| Amperage: | 20 |
