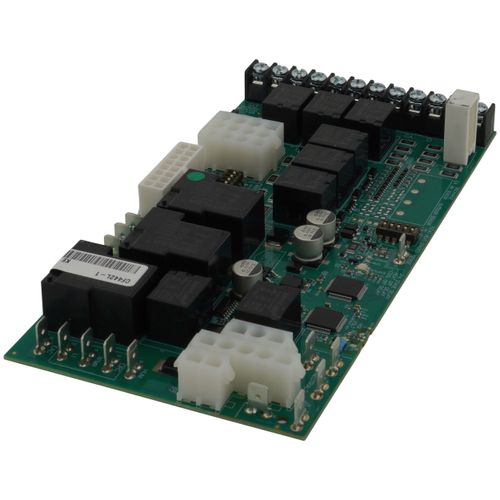

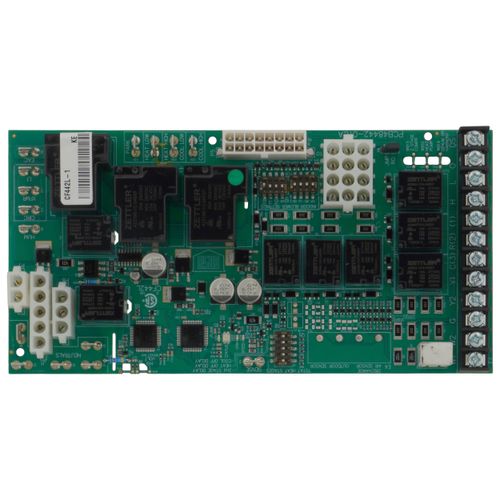

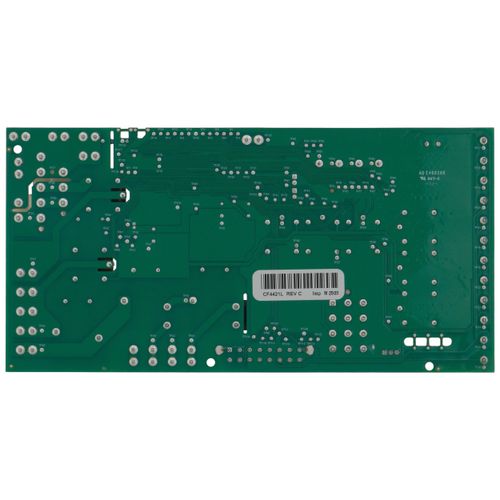

Furnace Control Board, CF442L-1C
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$177.53 each
In Stock
Get 1 Tue, Jul 7
Order by today, receive Tuesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
10 Amps
18 to 30 Vac
Description
–
The CF442L is a 24VAC Two-Stage Integrated Furnace Control which utilizes advanced microprocessor design to provide safety monitoring and precise timing of operation sequences.
The CF442L meets the latest CSA C22.2 No. 60730-2-5-14 / ANSI Z21.20-2014 standards.
Features:
- Streamlines installation and servicing with multi-pin connectors for harness adapter free
- connections
- Low-cost replacement
- Field configurable timings with dipswitch selection
- Tri-Color Status LED and Flame Status LED to aid with diagnostics and troubleshooting
Product Specifications:
- Input Voltage: Control: 18-30 VAC, 50/60 Hz
- Gas Valve Contact Rating: 2.5 A @ 24 VAC
- Inducer (Low/High Speed) Contact Rating: 5 A @ 120 VAC
- Heat / Cool Blower Contact Rating: 10 A @ 120 VAC
- Igniter Contact Rating: 5 A @ 120 VAC
- Operating Temperature: -40F to +176F (-40C to +80C)
- Moisture Resistance: Conformal coated to operate non-condensing to 95% RH
Replaces Model Numbers:
Lennox Speed tap: 63W26-01, 86W81, SS9220E1018, S9220E1018/U, 15J31358, 23W25, 23W25-01, 614148-02, 63W26, 100869-01, 100869-02, 100869-03, 12X09 Kit, 1505J17603
Lennox Variable Speed: 85267-5, 894W23, S9230F, S9230F1006, S9230F1014, 12X08 Kit, 19W60, 63W27, 63W27-01, 85267, 0741J58574, 085267807265, 100870-01, 100870-02, 100870-03
Specs
–
| Amperage: | 10 |
|---|---|
| Product Type: | Furnace Control Control Board |
| Operating Temp Range: | -40° to 176°F |
| Hertz: | 50/60 |
| Voltage: | 18 to 30 Vac |
