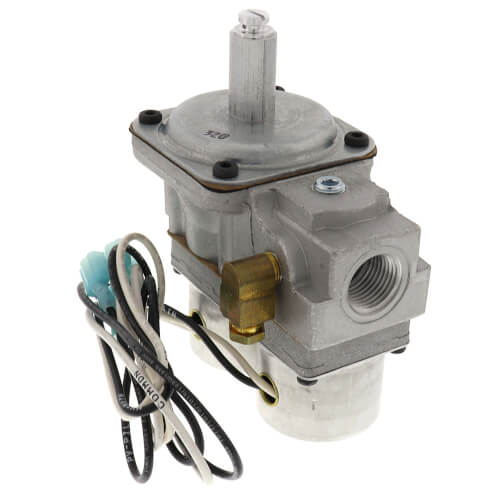

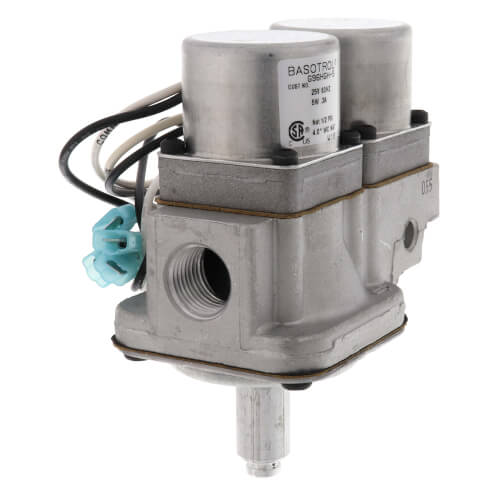

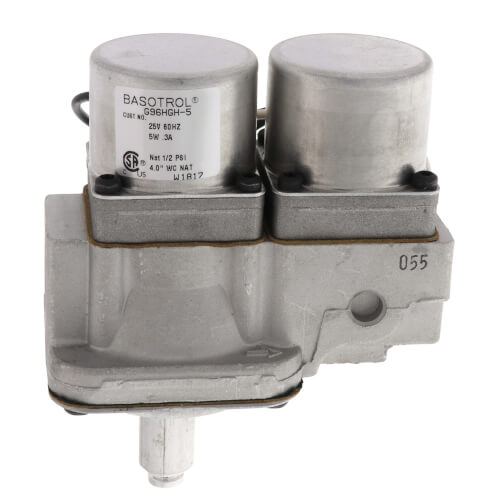

1/2" Dual Combination Auto. Gas & Bottom Adjust Pilot Valve 3 to 6" (25V)
Hover image to zoom

1/2" Dual Combination Auto. Gas & Bottom Adjust Pilot Valve 3 to 6" (25V)

SKU:
G96HGH-5
Rating:
(0)
Q&A:
(0)
1/2" Dual Combination Auto. Gas & Bottom Adjust Pilot Valve 3 to 6" (25V)
Hover image to zoom
$304.30 each
Backorder
Backorder
Get it Wed, Jul 24 - Wed, Aug 21
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Capacity (BTU) icon
1750000 BTU Capacity
Voltage icon
25V
Size icon
1/2"
Connection Type icon
Threaded Connection

Description

The G196 Series valves use the reliable valve body and magnetic operators from the G96 gas valve along with a manual A valve. The manual A valve, tested to commercial cooking standards, carries the C approval for commercial cooking applications. This combination demonstrates the reliability and long operating life offered by the G196. The magnetic operators are of bipolar design, closing the valves quickly when the power supply is interrupted. Typical applications of the G196 valves include electronic ignition systems on residential furnaces, boilers, unit heaters, rooftop equipment, agricultural heaters, commercial cooking equipment, and other types of light commercial and residential heating units.

Specs

Type:

Valve

Size:

1/2"

Voltage:

25V

Capacity (BTU):

1750000

Hertz:

60

Connection Type:

Threaded
