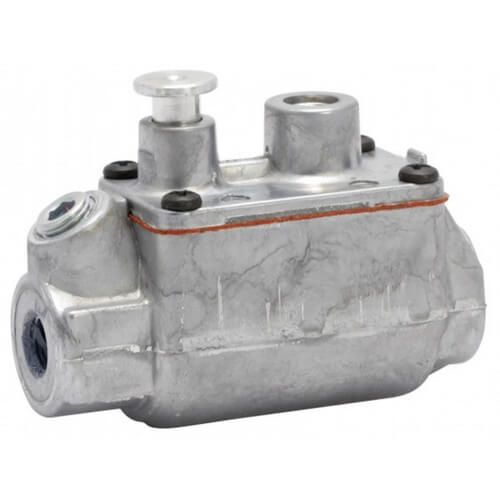

3/8" H17-Series High Temperature Automatic Shutoff Flow Pilot Gas Valve, 40 kW (133,000 BTU)

The H17 Series automatic pilot valves provide safe lighting and complete shutoff in the event that the flame heating the thermocouple is extinguished. They are designed for standing pilot applications and can be used with natural gas and Liquefied Petroleum (LP) gas. Depressing the reset button allows gas to flow to both the pilot and main burner. Applications include room heaters, infrared heaters, stand-alone portable heaters, catalytic heaters, refrigerators, and similar applications.

H17 models are also available with a higher ambient temperature, up to a maximum of 300°F (149°C), for use on commercial ovens, broilers, and other applications.

Application:
The H17 Series valves provide complete shutoff in the event that the flame heating the thermocouple is extinguished. They are suitable for use with natural gas, LP gas, or LP gas-air mixtures at pressures up to 0.5 psi (35 mbar). The H17 is suitable for operation over a temperature range of -40 to 150°F (-40 to 66°C) for standard models. High temperature models are suitable for operation over a temperature range of -40 to 300°F (-40 to 149°C).

Description:
H17 valves are compact, straight-through aluminum valves with pipe sizes from 1/8 to 1/2 inch. H17 valves do not have a flow interrupter, therefore, gas flows to both the main burner and pilot burner (if used) when the reset button is depressed. Where a pilot is not used, the pilot outlet is omitted and the tip of the thermocouple is inserted directly in the main burner flame.

Mounting:
H17 valves may be mounted in any position. This permits the reset button to be located in the most accessible location.

Features:
  • Compact Design: Permits installation in dimensionally restricted applications
  • Versatile Mounting: Allows easy access to the reset button for lighting
  • Reliable: Proven by thousands of units in service

Note: Image may not be actual representation of item.
Hide Description
Manuals (2)
Specs
Product Type:

Valve

Type:

Gas

Inlet Size:

3/8"

Outlet Size:

3/8"

Inlet Gas Pressure:

0.5 psi

Operating Temp Range:

-40° to 300°F

Kilowatts (KW):

40

Capacity (BTU):

133000

×
