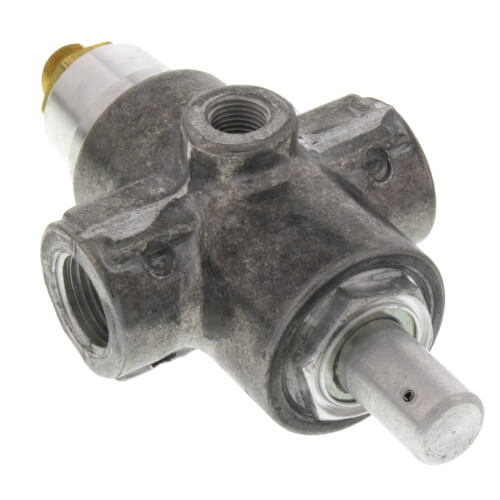

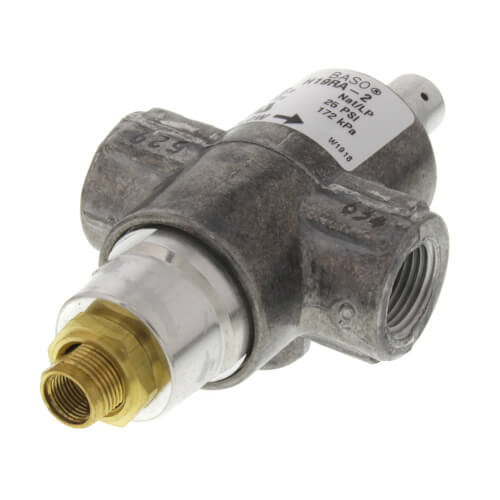

3/8" Automatic Shutoff High Pressure Pilot Gas Valve (600,000 BTU)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$411.47 each
In Stock
Get 1 Tomorrow, Jul 7
Order by 6PM, receive Tomorrow
MANUALS (2)
This item replaces: H19RA-2
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Propane, Natural Gas
3/8"
3/8"
600000 BTU Capacity
25 psi
Aluminum
Description
–
Note: This model does not contain a Flow Interrupter
The H19 Series high pressure gas valve provides safe lighting and complete shutoff in the event that the flame heating the thermocouple is extinguished. Typical applications include commercial and industrial heaters, crop dryers, and similar applications. The H19 LA and H19 NA models with flow interruption feature allow gas flow only to the pilot during the lighting operation. The H19 RA and H19 TA models without flow interruption permit gas to flow to both the pilot and main burner. The H19 valve can be used with natural gas and LP gas, at pressures up to and including 25 Psi. Sizes available are 1/4 in. and 3/8 in. NPT.
The H19 Series high pressure gas valve provides safe lighting and complete shutoff in the event that the flame heating the thermocouple is extinguished. Typical applications include commercial and industrial heaters, crop dryers, and similar applications. The H19 LA and H19 NA models with flow interruption feature allow gas flow only to the pilot during the lighting operation. The H19 RA and H19 TA models without flow interruption permit gas to flow to both the pilot and main burner. The H19 valve can be used with natural gas and LP gas, at pressures up to and including 25 Psi. Sizes available are 1/4 in. and 3/8 in. NPT.
Specs
–
| Capacity (BTU): | 600000 |
|---|---|
| Inlet Size: | 3/8" |
| Outlet Size: | 3/8" |
| Fuel Type: | Propane Natural Gas |
| Max Pressure: | 25 psi |
| Material: | Aluminum |
| Kilowatts (KW): | 176 |
