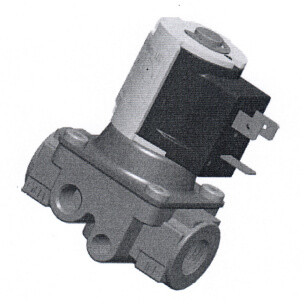

3/4" Threaded H91-Series Automatic Gas Valve, 95 kW, 25V (325,000 BTU)

3/4" NPT H91-Series Automatic Gas Valve, 95 kW, 25V (325,000 BTU)

The H91 Series BASOTROL Automatic Gas Valves are two-wire, electrically-operated shutoff valves that automatically open and close on a demand signal from a thermostat or other controlling device. These valves can be used for gas-fired appliances with a maximum operating pressure of 0.5 psi (35 mbar [3.5 kPa]).

Valves are available with body connections from 1/8 inch to 1 inch with different operating voltages.

Applications:
The H91 valves can be used with natural gas, Liquefied Petroleum (LP) gas, manufactured gas, mixed gas, or LP gas-air mixtures at pressures up to 0.5 psi (35 mbar [3.5 kPa]). They are suitable for operation over a temperature range of -40 to 175°F (-40 to 79°C) and can be used on all gas-fired appliances. The H91 valves can also be used as replacements for solenoid type valves on gas appliances.

Additionally, the H91 series is available with other optional configurations.

Pressure/{ilot Connection:
Pressure and pilot connections are available when required. Contact BASO Gas Products for details and ordering.

Features:

• Valve Sizes from 1/8 inch to 1 inch: Provide capacities up to 500,000 Btu/hr (148 kW)
• Multiple Operating Voltages: Provide the flexibility to suit market requirements

Note: Image may not be actual representation of item.
