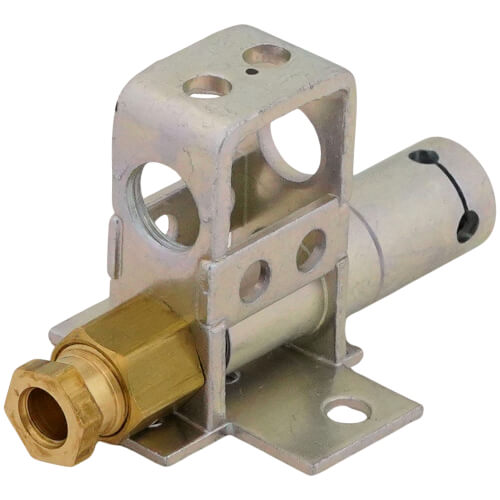

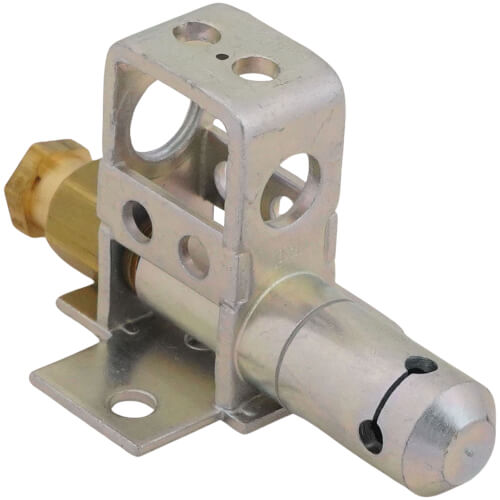

Pilot Burner Assembly w/ #7 Tip Arrangement

The J Series multi-mount universal pilot burners are used in standing pilot applications and are available in three models. Mounting brackets on all four sides of each burner permit adaptation to almost any application. Pilot burners can be ordered with or without an inlet fitting that controls the flow of gas to the pilot burner. Figure 12 shows example part numbers for ordering pilot burners with or without an inlet fitting.

The pilot burners are individually packed in a plastic bag ans with one natural gas inlet installed, one LP gas inlet fitting, and necessary parts for mounting.

Features:

• Three tapped holes in each bracket for vertical adjustment
• Natural gas and LP gas inlet fitting supplied
• Necessary parts for mounting furnished in each package

Note: Image may not represent actual product. Please refer to the Product Overview PDF in the resources section to confirm which Pilot Burner Tip Position you require for your application.
