Genesis Primary Control, Lockout Time 15 Seconds, 12VDC

Product Update: This item has recently been updated by the manufacturer, and newer versions no longer include wire flag terminals, wire nuts, or a limit jumper. Based on our current inventory, you may receive either the previous or updated version during this transition.

Note: LICENSED CONTRACTOR REQUIRED
This product must be installed by a qualified and licensed contractor using properly calibrated combustion test equipment. Failure to adhere to this requirement may result in significant property damage, serious personal injury, or death.

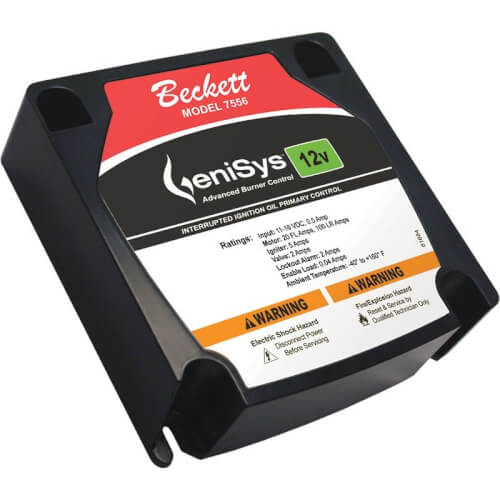

The Beckett GeniSys 12V Advanced Burner Control is a 12 Vdc primary safety control for oil burners used on pressure washers, road stripers, crack sealers, hot patchers, and asphalt distributors, to name a few examples. The GeniSys 12V is used with a suitable cad cell fl ame sensor to control the oil burner motor, igniter, and optional solenoid valve. It can provide interrupted or intermittent duty ignition, and it has a 15-second lockout time.

Features & Benefits:

• *New Feature* Programmable valve-on delay and motor-off delay provides chamber cooling after call for heat
• Valve-on delay / motor-off delay (Field programmable with Beckett's Contractor Tool)
• Epoxy potted for moisture resistance
• Welded relay protection with redundant motor relays
• High ambient temperature rating
• Alarm output enables visual or audio indication of flame failure and lock out condition
• Interrupted ignition
• Relight function
• Fused protection
• 15 second lockout time
• Communication port

Inputs

• Voltage: 12 VDC nominal (11 to 16 VDC)
• Current: 160 mA nominal (500 mA max at 16 VDC)
• Enable Load: 40mA at 12 VDC Outputs

  • Motor: 12 VDC, 20 full load amps (FLA), 100 locked rotor amps (LRA)
  • Igniter: 12 VDC, 5 A
  • Solenoid Valve: 12 VDC, 2 A
  • Lockout Alarm: 12 VDC, 2 A

    Programed Delays (Changeable with Beckett Contractor Tool)

    • Valve On Delay: 15 seconds
    • Motor Off Delay: 2 minutes
