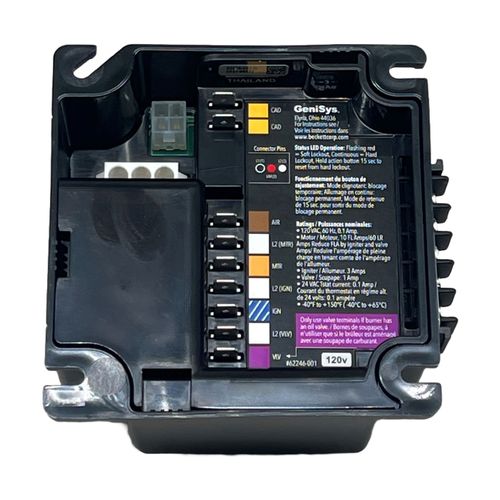

7565 GeniSys 120V Advanced Oil Burner Control

Note: LICENSED CONTRACTOR REQUIRED
This product must be installed by a qualified and licensed contractor using properly calibrated combustion test equipment. Failure to adhere to this requirement may result in significant property damage, serious personal injury, or death.

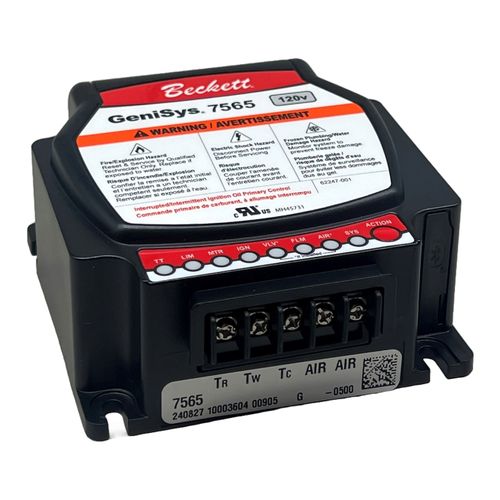

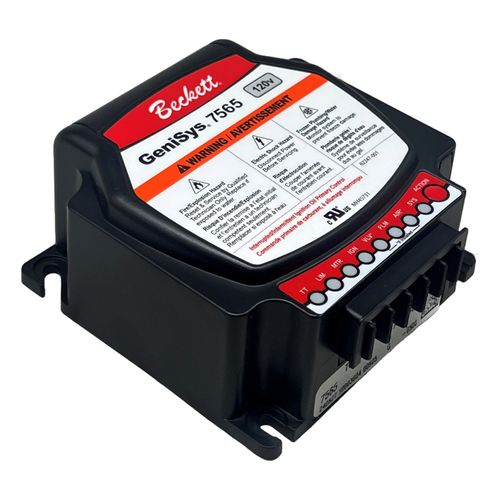

The Beckett GeniSys 7565 Advanced Oil Burner Control is a 120 VAC primary safety control for residential and light commercial oil burners used in boiler, furnace, and water heater applications having firing rates less than 20 gph. The GeniSys 7565 is used with the Beckett 7006-series CAD cell or equivalent flame sensor to control the oil burner motor, igniter, and optional solenoid valve. It has 24 VAC thermostat terminals compatible with both mechanical and many power stealing thermostats. It can also provide interrupted or intermittent duty ignition.

This control is compatible with the myTechnician Ecosystem and works with the myTechnician app. The myTechnician app can monitor the current status, control timing, burner cycle history, and program the control variables directly from his/her phone. The myTechnician app is capable of communicating with myTechnician compatible devices and presenting diagnostics and troubleshooting information related with them. The myTechnician app is available for both iOS and Android operating systems.

Product Features

• Last 50 cycles and last 15 faults history
• Compatible with burners running #2 fuel oil, up to 100% biodiesel, and up to 100% renewable diesel
• Separate inputs for combustion air and blocked vent
• Enhanced diagnostics and programming through the myTechnician app
• Configurable for interrupted or intermittent ignition operation
• Configurable timings for valve-on delay (or "pre-purge") and motor-off delay (or "post-purge")

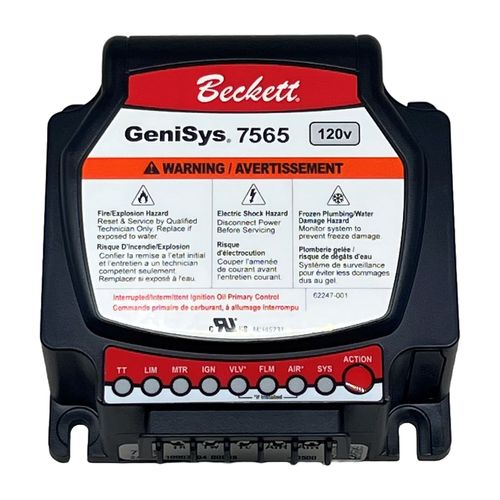

• Eight status lights provide hands-free understanding of burner operation
• Pump prime mode for technicians
• Extra terminal for compatibility with smart thermostats
• Upon request, sends live control data and history to R.W. Beckett Technical Support when troubleshooting
• Auto-configures valve-on delay timing for a solenoid valve upon detection

Product Technical Information

• Voltage: 120 Vac Nominal (102-132 Vac)
• Current: 100 mA plus burner motor, igniter, and valve loads
• Frequency: 60 Hz
• Combustion Air/Blocked Vent (Front side): 10mA @ 24Vac min
• Combustion Air/Blocked Vent (Underside): 1.9mA @ 120Vac min
• Thermostat Anticipator Current: 0.1 A
• Thermostat Voltage: 24 Vac
• Motor: 120 Vac, 10 full load amps (FLA*), 60 locked rotor amps (LRA) Note: Reduce motor FLA rating by igniter and valve currents
• Igniter: 120 Vac, 3 A
• Solenoid Valve: 120 Vac, 1 A
• Storage Ambient Temperature: -40°F to +150°F (-40°C to +65°C)
• Operating Ambient Temperature: -40°F to +150°F (-40°C to +65°C)
• Moisture: 5 to 95% RH, non-condensing and non-crystallizing
• Approvals: Underwriters Laboratory Recognition per UL 60730-1, UL 60730-2-5, CSA E60730-1, C22.2 NO. 60730-2-5
