3" Flanged 3D-3S Cast Iron Triple Duty Valve
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,702.13 each
Backorder
Get it Wed, Aug 5 - Fri, Sep 4
MANUALS (3)
Lift Gate
–
This product weighs 92 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
3"
Angle
Flanged x Flanged Connection
Iron
250°F Max
175 MAX PSI
Description
–

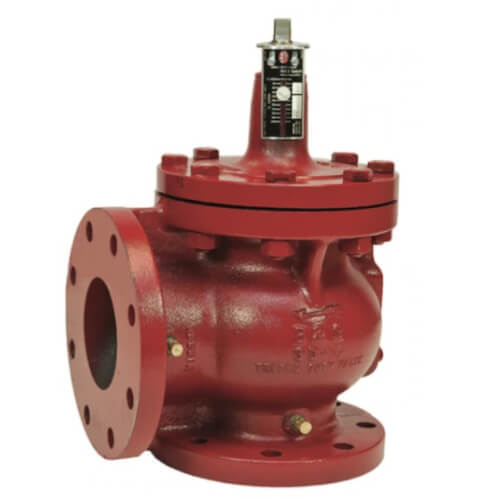

The Triple Duty Valve is a quiet operating heavy-duty valve which performs all of the functions normally required on the discharge side of hydronic system pumps.
The valve serves as a nonslam check valve as needed for zoned pumping, parallel and standby pumping, and condenser water applications. The spring loaded disk prevents valve chatter, and assures positive shutoff.
Bell & Gossett's Triple Duty Valve has a calibrated nameplate for rough system balance. The Triple Duty Valve is also equipped with Model RV-125A brass readout valves for more accurate system balance.
The calibrated nameplate allows the valve to be returned to the original balance position after shutoff.
To repack under system pressure, turn the valve stem to the fully open position. Turning the valve stem to the closed position provides shutoff.
The valve serves as a nonslam check valve as needed for zoned pumping, parallel and standby pumping, and condenser water applications. The spring loaded disk prevents valve chatter, and assures positive shutoff.
Bell & Gossett's Triple Duty Valve has a calibrated nameplate for rough system balance. The Triple Duty Valve is also equipped with Model RV-125A brass readout valves for more accurate system balance.
The calibrated nameplate allows the valve to be returned to the original balance position after shutoff.
To repack under system pressure, turn the valve stem to the fully open position. Turning the valve stem to the closed position provides shutoff.
Specs
–
| Application: | Flow Control |
|---|---|
| Size: | 3" |
| Body Pattern: | Angle |
| Connection Method: | Flanged |
| Connection Type: | Flanged x Flanged |
| Material: | Iron |
| Temperature Range (F): | 250°F Max |
| Max Pressure (PSI): | 175 |
