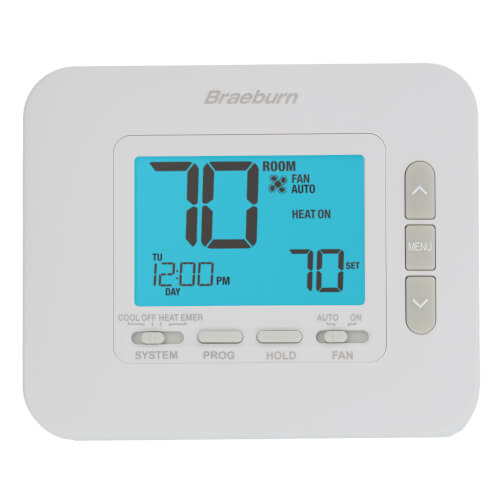

5-2 Day Programmable Thermostat (2 Heat/1 Cool) - Economy Series
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (3)
Product Highlights
Description
Note: Additional Information regarding Product and Installation can be found in Manuals section
Product Overview
The universal programmable thermostat shall be a Braeburn model number 2230, 4.25" high x 5.12" wide x 1" deep, powered with either 24 Volt AC or with two "AA" Alkaline batteries (3.0 Volt DC). In the event of a power failure, the unit shall retain all user, installer settings and program settings. The thermostat shall be compatible with low voltage single or multi-stage gas, oil, or electric heating or cooling systems, and single stage heat pumps with or without auxiliary heat. Also compatible with 250mv - 750mv millivolt heating only systems and 2 wire hydronic zone systems. The thermostat shall have a bright blue backlight display and separate sub-base. Temperature control range shall be between 45-Deg and 90-Deg F (7-Deg and 32-Deg C), accuracy of +/- 1-Deg F (+/- .5-Deg C) and operating humidity range between 5% and 95% relative humidity. The thermostat shall include separate installer and user setup modes, heat pump check terminal, permanent non-volatile memory to retain user settings, filter check monitor and installer lock mode.
Product Features
- Large 4.4 Sq. In. Display
- Bright Blue Backlight
- SmartLimit Temperature Limits
- SpeedSet Programming Mode
- Hardwire or Battery Powered
- Installer Lock Mode
- Heat Pump Check Terminal
- Adjustable Temperature Differential Optional Celsius Display
- Separate O and B Terminals Compatible with 2-Wire Hydronic zone systems
Specs
| Stages: | 2 Heat/1 Cool |
|---|---|
| Application: | Multi-Stage (Heat/Cool) Heat Pump |
| Programmability: | 5-2 Day Programmable |
| User Interface: | Push Button |
| Mount: | Horizontal |
| Options: | Large Display Fan Control |
| Power Method: | Battery Hardwired |

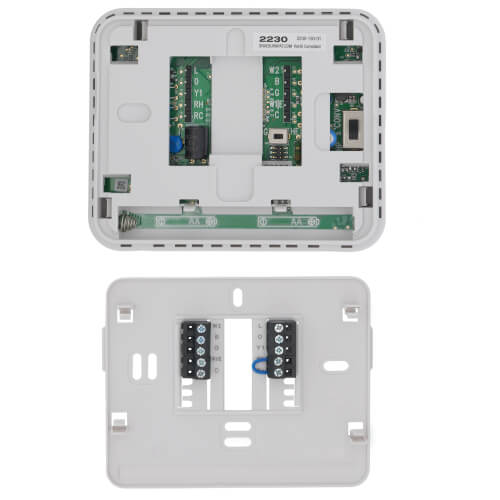

| Terminations: | Rh, Rc, Y1, Y2, G, W1/E, W2, O, B, C |
| Voltage: | 24V |
| Warranty: | 5 Year |
