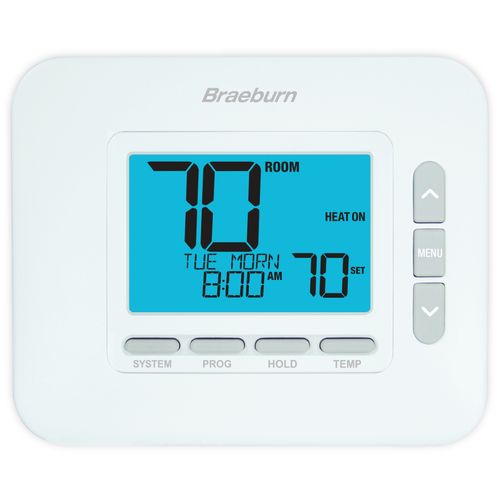

7 Day, 5-2 Day Programmable Thermostat (Heat Only) - Premier Series
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (3)
Product Highlights
Description
Braeburn 4020 is a heat only hydronic thermostat. It is 4.25" high x 5.12" wide x 1" deep, powered with either 24 Volt AC or with two "AA" Alkaline batteries (3.0 Volt DC). In the event of a power failure, the unit retains all user, installer and program settings. The thermostat is compatible with hot water, steam or under floor hydronic heating systems. Also compatible with 250mv - 750mv millivolt heating only systems and 3 wire hydronic zone systems. The thermostat has an adjustable bright blue backlight display, separate sub-base and multi-level keypad lockout. Temperature control range is between 45° and 90°F (7° and 32°C), accuracy of +/- 1_ F (+/- .5_ C) and operating humidity range between 5% and 95% relative humidity. The thermostat shall include separate installer and user setup modes, permanent non-volatile memory to retain user settings, adaptive recovery mode (ARM), remote sensor capability, slab sensor compatibility, freeze protection and high/low floor limits.
Product Features:
- 7 Day, 5-2 Day or Non-Programmable
- Large Display with Adjustable Backlight
- Minimum Boiler off Time
- Freeze Protection
- High/Low Floor Limits
- SmartLimit Temperature Limits
- SpeedSet Programming Mode
- Hardwire or Battery Powered
- User and Installer Lock Modes
- Adaptive Recovery Mode (ARM )
- Temporary Override Limits
- Compatible with 3 Wire Hydronic Zone Systems
Specs
| Programmability: | Programmable 5-2 Day 7 Day |
|---|---|
| Power Method: | Battery Hardwired |
| User Interface: | Push Button |
| Stages: | 1 Heat |
| Application: | Heat Only |
| Options: | Large Display |
| Warranty: | 5 Year |
| Terminations: | R, W, V3, C, S1, S2 |
| Voltage: | 24V |
| Mount: | Horizontal |
| Humidity Control: | No |
