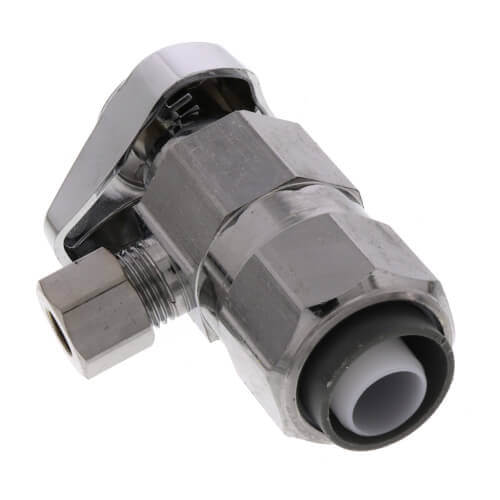

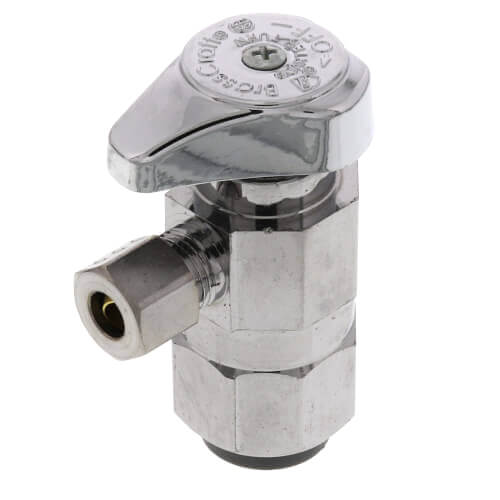

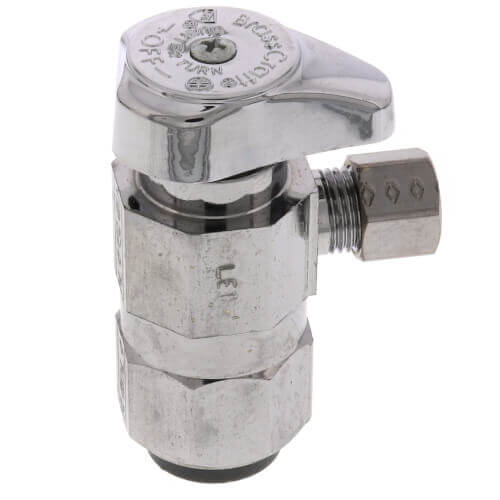

1/2" Nom Push Connect x 3/8" OD Push Connect, 1/4 Turn Angle Stop (Chrome Plated)

Name: 1/2" Nom Push Connect x 3/8" OD Push Connect, 1/4 Turn Angle Stop (Chrome Plated)
Brand: Brasscraft
SKU: G2QPS19X-C
Price: 12.52 USD
Availability: OutOfStock

Brand:

Brasscraft

SKU:

G2QPS19X-C

Rating:

(0)

Q&A:

(0)

Hover image to zoom

G2QPS19X-C has been discontinued

Discontinued February 25, 2023

This product was discontinued by the manufacturer.

MANUALS (1)

Submittal Sheet

Product Highlights

–

Nominal PushConnect

OD PushConnect

1/2"

3/8"

1/2" x 3/8"

Chrome Plated Brass

Description

–

For use with water in accessible locations only. Not intended for recirculating systems that produce continuous use temperatures above 115° F. For those applications, use our KTTM series ball stop.

Design Features:

Compatible with PEX, copper, and CPVC
Pre-inserted tube stiffener is "installation ready" for a faster connection
Compact machined one-piece brass body design
Fast, reliable, and secure connection
Push Connect X Push Connect inlet and outlet
Smooth 1/4 turn operation
Easy-to-remove handle helps protect against accidental stop operation during rough-ins
100% Leak tested
No Lead

Specs

–

Inlet Size:	1/2"
Outlet Size:	3/8"
Size:	1/2" x 3/8"
Inlet Type:	Nominal PushConnect
Outlet Type:	OD PushConnect
Type:	1/4 Turn
Material:	Chrome Plated Brass
Valve Type:	Angle
Lead Free:	Yes
Warranty:	1 Year
