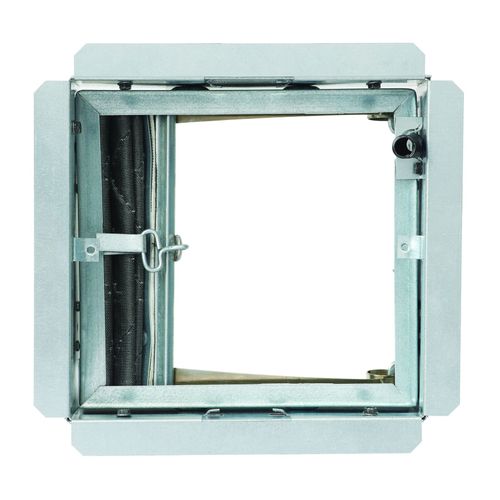

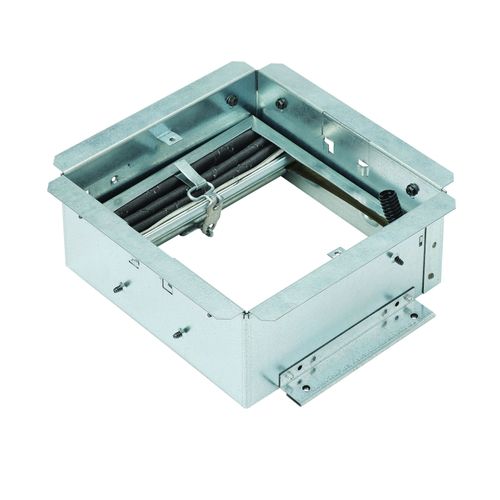

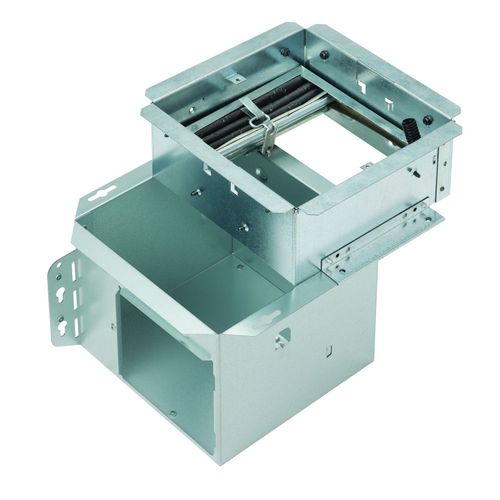

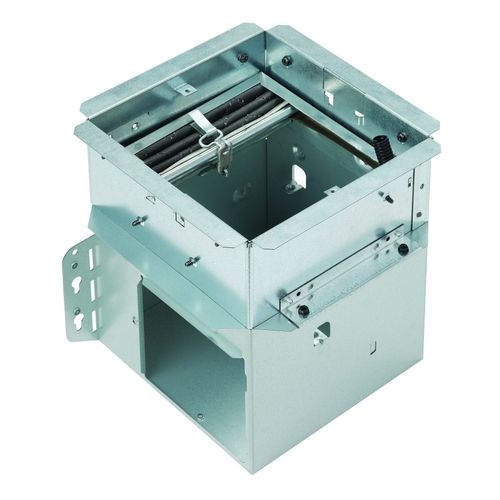

Roomside Series Exhaust Fan Radiation Damper

Broan-NuTone Roomside Series Radiation Damper prevents the rapid spread of fire to other areas of a home during a fire. Many codes require that exhaust fans installed in multi-family homes, with fire-rated ceilings, must be protected by radiation dampers. When the air temperature passing through the damper exceeds 165F, the fusible link melts, triggering the thermal fabric to automatically close across the damper. Airflow is interrupted by a flame and heat barrier, preventing the rapid spread of fire to other areas of the home.

Features:

• For use in 1, 2 and 3 hour rated floor-ceiling and roof-ceiling constructions
• Galvanized steel frame
• High temperature, non-asbestos, reinforced fiber thermal fabric
• Stainless steel closure springs
• Slide-on sleeve for easy installation.
• Compatible with the following Broan-NuTone Roomside Series ENERGY STAR fan and fan/light models: BE6, BE8, BENL5*, BENL8*, BEL8*, BEH, BE6F, BE8F, BELH*, BEL6F* *Light cable extension required on these models.
•
