BR511 has been discontinued
Discontinued January 18, 2025
This product was discontinued by the manufacturer.
MANUALS (2)
This item replaces: BR510, BR512
'/%3E%3C/svg%3E){kind=small}
Product Highlights
–
180 CFM
4.5 Sones
11-1/2" Sq.
13-1/2" Sq.
1 Year Warranty
8"
Description
–

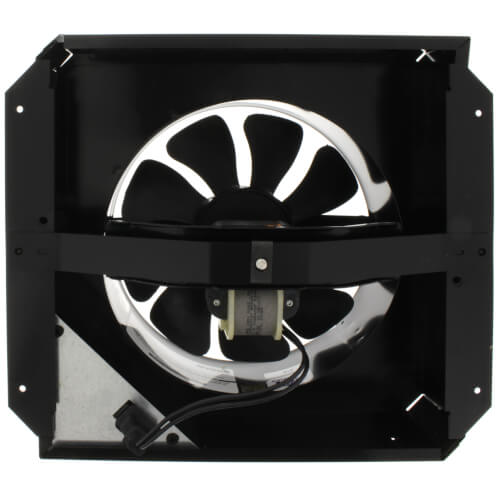

Broan's Room-to-Room Ventilation fans provide airflow of heated or cooled air from one room to another and adjust to fit walls from 3" to 5-1/2" thick. Model's 510 and 511 have built-in switches for variable speed sound level selection.
Features:
Features:
- 180 CFM 4.5 Sones.
- Built-in variable speed control.
- Housing adjusts to fit walls from 3" to 5-1/2" thick.
- Easy interior wall installation.
- Permanently lubricated motor.
- High-strength, reinforced polymeric fan blade.
- Two attractive white polymeric grilles can be painted to match decor.
Specs
–
| Size: | 8" |
|---|---|
| Air Flow Capacity (CFM): | 180 |
| Sone: | 4.5 |
| Amperage: | 0.9 |
| Voltage: | 120v |
| RPM: | 1575 |
| Housing Dimension: | 11-1/2" Sq. |
| Grille Dimension: | 13-1/2" Sq. |
| Grille Finish: | White |
| Warranty: | 1 Year |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
17 Replacement Parts
Fan Blade, S99020165
SKU: S99020165
BroanSheet Metal Nut - 1/4"-20
SKU: S99260434
BroanMotor Mounting Bracket
SKU: S98007820
BroanMounting Screw - #8-32 x 1/2"
SKU: S99150479
BroanGrille with Knob
SKU: 97011851
BroanParts Bag, S97011886
SKU: S97011886
BroanGrille with Hole for Fan Switch - Center Mount
SKU: S97011852
BroanFan Speed Switch
SKU: S99030132
BroanRotary Switch Knob
SKU: S99360218
BroanMotor, S99080175
SKU: S99080175
BroanScrew - #10-12 x 2-7/8"
SKU: S99380630
BroanGrille Mounting Screw - #10-12 x 1"
SKU: S99160323
BroanNut, #6-32 x 5/16"
SKU: S99260428
BroanLock Nut - 1/8"-27
SKU: S99260419
BroanSheet Metal Nut - #10-12
SKU: S99420479
Broan
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
Be the first to write a review.
Product Q&A
1 Question1 Question
Q: DOES THE RILL FOR THE OTHER SIDE LOOK THE SAME? IS IT INCLUDED ?
Asked by JOHN 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, both grills are the same and included.
