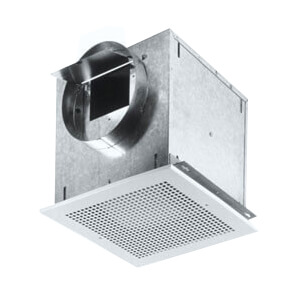

Main product image of L100MG Ceiling Mount Ventilation Fan w/ Metal Grille, 6" Round Duct (115 CFM)

Hover image to zoom

L100MG Ceiling Mount Ventilation Fan w/ Metal Grille, 6" Round Duct (115 CFM)

Name: L100MG Ceiling Mount Ventilation Fan w/ Metal Grille, 6" Round Duct (115 CFM)
Brand: Broan
SKU: L100MG
Price: 199.92 USD
Availability: OutOfStock

Brand:

Broan

SKU:

L100MG

Rating:

(0)

Q&A:

(0)

L100MG Ceiling Mount Ventilation Fan w/ Metal Grille, 6" Round Duct (115 CFM)

Hover image to zoom

L100MG has been discontinued

Discontinued September 9, 2022

This product was discontinued by the manufacturer.

MANUALS (2)

Replacement Parts

Product Highlights

–

115 CFM

0.9 Sones

12-1/4" x 12-1/4" x 11-3/4"

14" x 14"

1 Year Warranty

Description

–

Features:

115 CFM, 0.9 Sones (AMCA), horizontal ducting
6" round duct connector
Low profile, white metal grille
Can be ducted horizontally or vertically. In-line ducting available with separate adapter.
Single, impact-resistant centrifugal blower wheel
20 gauge galvanized steel housing
Use Broan Electronic Variable Speed Control to adjust blower speed and sound level (available separately)
Housing Dimension: 12-1/4" x 12-1/4" x 11-3/4"
Grille Dimension: 14" x 14"

**Note: Specifications on left hand side are based on fans ducted horizontally. Please see Product Specifications document for vertical ducting data.

Specs

–

Product Type:	Ceiling Mount Ventilation Fan w/ Metal Grille
Duct Size:	6"
Voltage:	120v
Air Flow Capacity (CFM):	115
Hertz:	60
Sone:	0.9
Housing Dimension:	12-1/4" x 12-1/4" x 11-3/4"
Nominal RPM:	630
Grille Dimension:	14" x 14"
Amperage:	1.1
Ducting:	Horizontal Vertical
Wattage:	87
Grille Finish:	White
Warranty:	1 Year
Grille Material:	Metal
