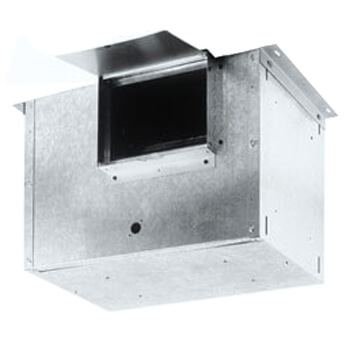

Main product image of L1500L In-Line Ventilation Fan, 8" x 12" Duct (1,214 CFM)

Hover image to zoom

L1500L In-Line Ventilation Fan, 8" x 12" Duct (1,214 CFM)

Name: L1500L In-Line Ventilation Fan, 8" x 12" Duct (1,214 CFM)
Brand: Broan
SKU: L1500L
Price: 595.18 USD
Availability: OutOfStock

Brand:

Broan

SKU:

L1500L

Rating:

(0)

Q&A:

(0)

L1500L In-Line Ventilation Fan, 8" x 12" Duct (1,214 CFM)

Hover image to zoom

L1500L has been discontinued

Discontinued March 31, 2023

This product was discontinued by the manufacturer.

MANUALS (2)

Replacement Parts

Product Highlights

–

1214 CFM

8" x 12"

6.7 Sones

22" x 18" x 18"

1 Year Warranty

5 Amps

Description

–

Features:

In-line model has removable access panel and no insulation.
1,214 CFM, 6.7 Sones (AMCA), horizontal ducting
Sound absorbing acoustic insulation
Can be ducted horizontally or vertically (1,076 CFM, 3.5 Sones with vertical ducting). In-line ducting available with separate adapter.
8" x 12" duct connectors (2)
Single, impact-resistant internal blower wheel.
Rugged galvanized steel housing
Automatic backdraft damper
Housing Dimension: 22" x 18" x 18"

**Note: Specifications on left hand side are based on fans ducted horizontally. Please see Product Specifications document for vertical ducting data.

Specs

–

Product Type:	In-Line Ventilation Fan
Air Flow Capacity (CFM):	1214
Sone:	6.7
Amperage:	5
Wattage:	468
Nominal RPM:	1055
Voltage:	120v
Duct Size:	8" x 12"
Hertz:	60
Ducting:	Horizontal Vertical
Housing Dimension:	22" x 18" x 18"
Warranty:	1 Year
