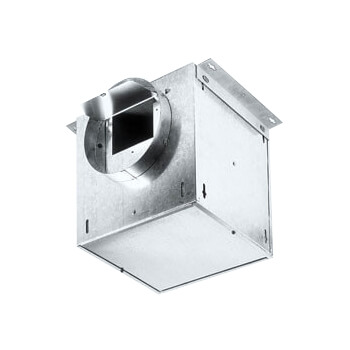

Main product image of L150L In-Line Ventilation Fan, 6" Round Duct (147 CFM)
Magnifying glass
Hover image to zoom

L150L In-Line Ventilation Fan, 6" Round Duct (147 CFM)

Brand:
Broan
SKU:
L150L
Rating:
(0)
Q&A:
(0)
L150L In-Line Ventilation Fan, 6" Round Duct (147 CFM)
Magnifying glass
Hover image to zoom
L150L has been discontinued
Discontinued September 25, 2023
This product was discontinued by the manufacturer.
Suggested Alternative:
L150EL High-Capacity In-Line Ventilation Fan, 8" Round Duct (174 CFM)
Brand:
Broan
SKU:L150EL
(0)
VIEW ALTERNATIVE
VIEW ALTERNATIVE

Product Highlights

Product Highlight: Air Flow Capacity (CFM)
147 CFM
Product Highlight: Duct Size
6"
Product Highlight: Sone
1.1 Sones
Product Highlight: Housing Dimension
12-1/4" x 12-1/4" x 11-3/4"
Product Highlight: Warranty
1 Year Warranty
Product Highlight: Voltage
120v

Description

Features:
  • Suitable for kitchen installations
  • In-line model has removable access panel
  • No insulation inside housing
  • 147 CFM, 1.1 Sones (AMCA), horizontal ducting
  • Can be ducted horizontally or vertically (142 CFM, 1.3 Sones with vertical mount). In-line ducting available with separate adapter
  • 6" round duct connectors (2)
  • Single, impact-resistant centrifugal blower wheel
  • 20 gauge galvanized steel housing
  • UL Listed for use over bathtubs and showers when connected to a GFCI branch circuit
  • Use Broan Electronic Variable Speed Control to adjust blower speed and sound level (available separately)
  • Housing Dimension: 12-1/4" x 12-1/4" x 11-3/4"
**Note: Specifications on left hand side are based on fans ducted horizontally. Please see Product Specifications document for vertical ducting data.

Specs

Product Type:

In-Line Ventilation Fan w/ Round Duct

Duct Size:

6"

Air Flow Capacity (CFM):

147

Voltage:

120v

Sone:

1.1

Hertz:

60

Amperage:

1.3

Nominal RPM:

920

Wattage:

100

Ducting:

Horizontal

Vertical

Housing Dimension:

12-1/4" x 12-1/4" x 11-3/4"

Warranty:

1 Year
