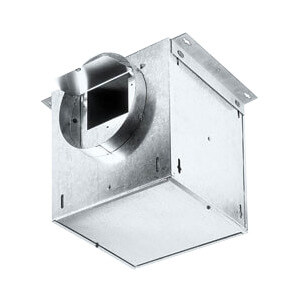

L200L In-Line Ventilation Fan, 8" Round Duct (195 CFM)

Name: L200L In-Line Ventilation Fan, 8" Round Duct (195 CFM)
Brand: Broan
SKU: L200L
Price: 208.93 USD
Availability: OutOfStock

Brand:

SKU:

L200L

Rating:

Q&A:

Hover image to zoom

L200L has been discontinued

Discontinued May 29, 2023

This product was discontinued by the manufacturer.

MANUALS (2)

Replacement Parts

Direct Replacement:

L200EL In-Line Ventilation Fan, 8" Round Duct (200 CFM)

Brand:

SKU:L200EL

(0)

Order by today, receive 5 by Tuesday

–

195 CFM

1.9 Sones

12-1/4" x 12-1/4" x 11-3/4"

1 Year Warranty

120v

–

Features:

Suitable for kitchen installations
In-line model has removable access panel
No insulation inside housing
195 CFM, 1.9 Sones (AMCA), horizontal ducting
Can be ducted horizontally or vertically (183 CFM, 1.0 Sones with vertical mount). In-line ducting available with separate adapter
8" round duct connectors (2)
Single, impact-resistant centrifugal blower wheel
20 gauge galvanized steel housing
UL Listed for use over bathtubs and showers when connected to a GFCI branch circuit
Use Broan Electronic Variable Speed Control to adjust blower speed and sound level (available separately)
Housing Dimension: 12-1/4" x 12-1/4" x 11-3/4"

**Note: Specifications on left hand side are based on fans ducted horizontally. Please see Product Specifications document for vertical ducting data.

–

Product Type:	In-Line Ventilation Fan w/ Round Duct
Duct Size:	8"
Air Flow Capacity (CFM):	195
Voltage:	120v
Sone:	1.9
Hertz:	60
Amperage:	1.8
Wattage:	127
Nominal RPM:	865
Ducting:	Horizontal Vertical
Housing Dimension:	12-1/4" x 12-1/4" x 11-3/4"
Warranty:	1 Year
