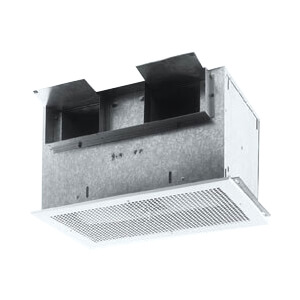

Main product image of L500K Ceiling Mount Ventilation Fan, 4-1/2" x 18-1/2" Duct (481 CFM)

Hover image to zoom

L500K Ceiling Mount Ventilation Fan, 4-1/2" x 18-1/2" Duct (481 CFM)

Name: L500K Ceiling Mount Ventilation Fan, 4-1/2" x 18-1/2" Duct (481 CFM)
Brand: Broan
SKU: L500K
Price: 425.66 USD
Availability: OutOfStock

Brand:

Broan

SKU:

L500K

Rating:

(0)

Q&A:

(1)

L500K Ceiling Mount Ventilation Fan, 4-1/2" x 18-1/2" Duct (481 CFM)

Hover image to zoom

L500K has been discontinued

Discontinued June 21, 2022

This product was discontinued by the manufacturer.

MANUALS (2)

Replacement Parts

Product Highlights

–

481 CFM

4-1/2" x 18-1/2"

4.4 Sones

21-1/2" x 12-1/4" x 11-3/4"

21" x 14"

1 Year Warranty

Description

–

Features:

Suitable for kitchen applications
481 CFM, 4.4 Sones (AMCA), horizontal ducting
Can be ducted horizontally or vertically (473 CFM, 4.0 Sones with vertical ducting). In-line ducting available with separate adapter
4-1/2" x 18-1/2" duct connector
Quiet automatic backdraft dampers
Painted white enamel metal grille
Two metal centrifugal blower wheels
Use Broan Electronic Variable Speed Control to adjust blower speed and sound level (available separately)
Housing Dimension: 21-1/2" x 12-1/4" x 11-3/4"
Grille Dimension: 21" x 14"

**Note: Specifications on left hand side are based on fans ducted horizontally. Please see Product Specifications document for vertical ducting data.

Specs

–

Product Type:	Ceiling Mount Ventilation Fan
Air Flow Capacity (CFM):	481
Duct Size:	4-1/2" x 18-1/2"
Sone:	4.4
Voltage:	120v
Hertz:	60
Housing Dimension:	21-1/2" x 12-1/4" x 11-3/4"
Amperage:	2.2
Grille Dimension:	21" x 14"
Nominal RPM:	700
Ducting:	Horizontal Vertical
Wattage:	232
Grille Finish:	White
Grille Material:	Metal
Warranty:	1 Year
