MANUALS (2)
Product Highlights
Description
Overview
In solar systems, the temperature in the storage tank can vary considerably, depending on the solar radiation, and can reach very high temperatures over long periods. In summer, and if there is little water usage, the hot water at the storage tank outlet can actually reach temperatures around 200ºF. At these temperatures, the hot water cannot be used directly because of the danger of scalding.
Function

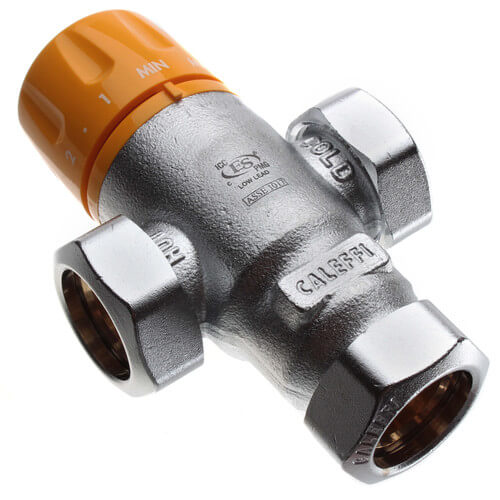

The thermostatic mixing valve is used in systems for scald protection in the production of domestic hot water. It is designed to maintain the set temperature of the mixed water supplied to the user when there are variations in the temperature and pressure conditions of the incoming hot and cold water or in the water's flow rate. This particular series of mixing valves can function continuously at the high temperatures of the incoming hot water from the solar storage tank.
Specs
| Size: | 3/4" |
|---|---|
| Connection Type: | C x C |
| Connection Method: | Sweat |
| Temperature Range (F): | 85°F - 150°F |
| Max Temp (F): | 150°F |
| Min Temp (F): | 85°F |
| Material: | Brass |
| Body Pattern: | 3-Way |
| Standards Met: | ASSE 1017 |
| Application: | Point of Source |
Contact
Happy Independence Day!
Compare Similar Products
Product Reviews
I would definitely buy this product again
Product Q&A
2 QuestionsQ: What is the flow capacity?
Asked by Kevin 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffIts rated at 1.3GPM, see the linked submittal: http://s3.supplyhouse.com/product_files/252159A-submittal.pdf
Q: Is there any lead content in this product that would make it unsafe to use for potable water from a water heater?
Asked by Need hotter water 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffThis product meets the latest 2014 low lead requirements and is suitable for use with potable water.
