Product Highlights
–
Brass
150 MAX PSI
FNPT x C Connection
1"
Female Thread Type
230°F Max Temp
Description
–

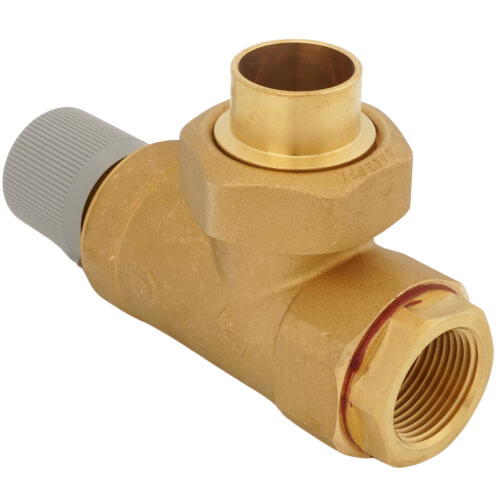

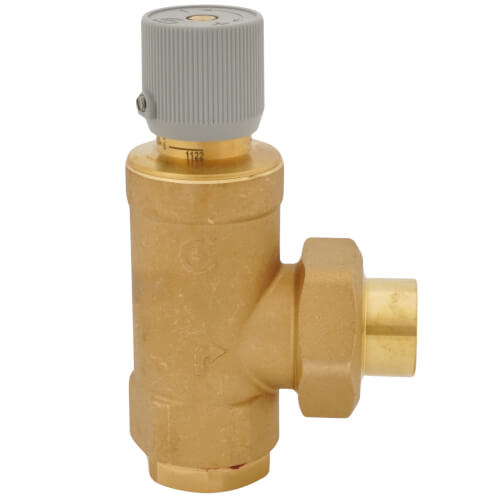

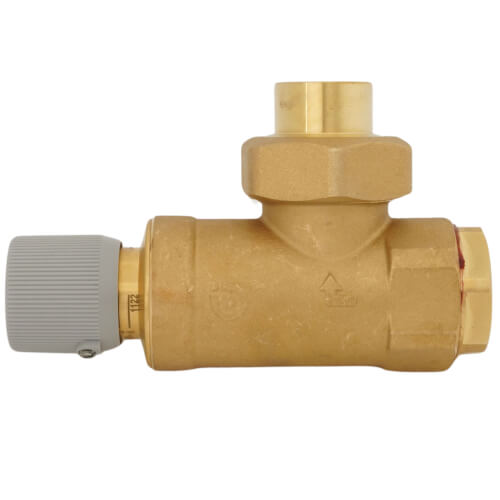

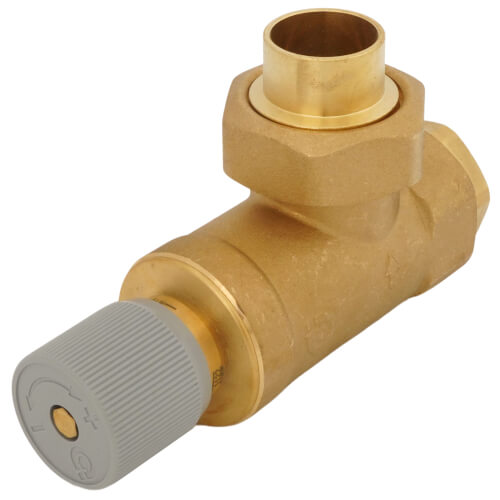

1" NPT Inlet x 1" Sweat Outlet Differential Pressure Bypass Valve
The differential bypass valve is used in systems working with variable flow rates, for example in those making widespread use of thermostatic valves or 2-way motorized valves. It ensures a flow recirculation proportional to the number of valves being closed, while limiting the maximum differential pressure value generated by the pump. In chilled water systems with high head pumps, installation of the version with a setting range between 100 and 400 kPa is advisable.
Specifications:
- Adjustable from 2 to 10 psi
- Brass body
- Max working pressure: 150 psi
- Working temp range: 32° - 230°F
- 3/4" flow up to 9 gpm
- 1" flow up to 40 gpm
- 1-1/4" flow up to 45 gpm
- Weight: 1.4 lbs
- Connection: 1" NPT Inlet x 1" Sweat Outlet
Specs
–
| Product Type: | Bypass Valve |
|---|---|
| Size: | 1" |
| Connection Type: | FNPT x C |
| Thread Type: | Female |
| Max Pressure (PSI): | 150 |
| Valve Type: | Angle |
| Max Temp (F): | 230°F |
| Pressure Range: | 2 to 10 psi |
| Material: | Brass |
