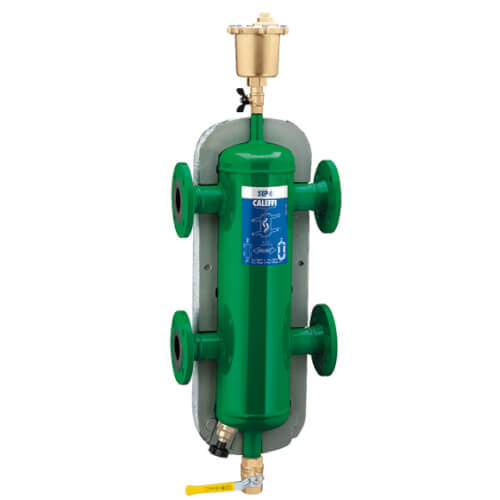

SEP4 2-1/2" ANSI 4-in-1 Flange Hydro Separator, 80 GPM

The Caleffi SEP4 combination separator is a device that incorporates four critical functions for hot or chilled water systems. It combines high performance air and dirt (magnetic and nonmagnetic) removal into the hydraulic separation function which makes the primary and secondary circuits connected to it hydraulically independent. The SEP4 features an internal coalescing element that continuously and automatically eliminates air micro-bubbles with the simultaneous removal of dirt particles as tiny as 5 microns. The air discharge capacity is very high, with the capability of automatically removing all the air present in the system down to the micro-bubble level. The 4-in-1 high performance functionality of the SEP4 saves system installation and maintenance costs as there is no need to include separate air and dirt separators. In addition to removing solid impurities in the system without isolating the separator or shutting down the system, the added powerful removable external magnet belt (union) or probe(s) (flanged) in the lower body removes up to 100% of the ferrous impurities, including magnetite, that can form in a hydronic system. The SEP4 has 2-1/2 times the ferrous impurities removal performance of standard air and dirt separators.

Features:

• Epoxy resin coated steel body
• Stainless steel internal coalescing mesh
• Pre-formed insulation on 2" - 4" size
• One neodymium magnet assembly
