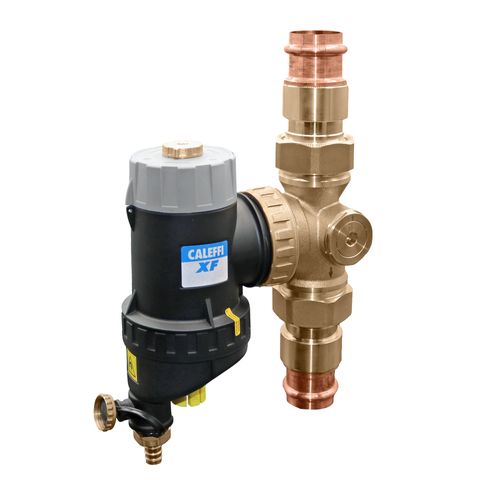

1" 577 XF Series Magnetic Strainer (Press)

Xtra Filtration magnetic dirt separator (press)

Composite body with rotating brass collar

Internal filter mesh with rotating brush

50% bypass feature on 1-1/4" and 1-1/2" sizes

Complete with: Internal magnet in drywell and Drain Valve.

Specifications:

• Semi-automatic self-cleaning extra filtration separator (press)
• Composite body with rotating brass collar Internal filter mesh with rotating brush 50% bypass feature on 1¼" and 1½" sizes
• Complete with: Internal magnet in drywell
• Drain valve connection: 1", press union.
• Maximum operating pressure: 45 psi.
• Medium temperature range: 32 - 195 - degree F.
• Material: composite/brass.
