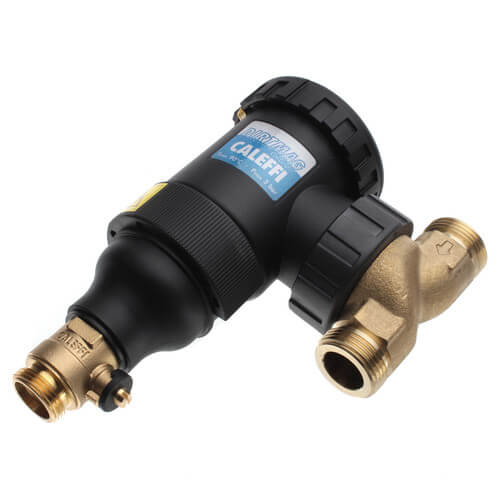

3/4" DIRTMAG - Dirt Separator with Magnet (NPT)

The DIRTMAG® magnetic dirt separator removes both ferrous and non-ferrous impurities continuously, featuring a powerful removable external magnet around the body that removes up to 100% of the ferrous impurities, including magnetite, that can form in a hydronic system. The DIRTMAG® has 2-1/2" times the removal performance of a standard dirt separator. The body of the NA5453 series separator is made of glass reinforced nylon specifically designed for use in heating and cooling systems. It also is especially versatile as it can be installed on either horizontal or vertical piping with the rotating brass base mount.

• Brass mounting housing.
• Composite PA66G30 body.
• Can be rotated for installation to either vertical or horizontal pipes while maintaining the same operating performance.
• Max working pressure: 45 psi
• Working temp range: 32 - 195F
• Particle separation capacity: to 5 um (0.2 mil)
• Magnetite removal efficiency: 95%
• Drain valve with hose connection.
• Top dosing point port.
• Dosing capacity: 12 fluid oz
• Manual screw air vent.
