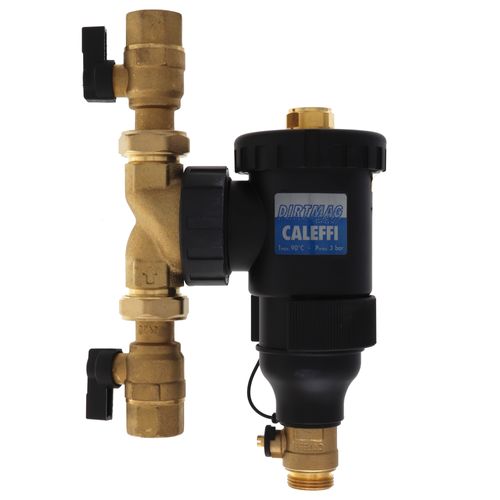

3/4" DIRTMAG - Dirt Separator with Magnet & Isolation Valves (Union NPT)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$227.22 each
In Stock
Get 4 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
FNPT x FNPT Connection
Brass, Steel
3/4"
45 MAX PSI
195°F Max Temp
Description
–
- The DIRTMAG® removes both ferrous and non-ferrous impurities continuously in a sealed hydronic heating and cooling system.
- A powerful removable external magnetic ring attracts ferrous impurities with 2-1/2" times the removal performance of a standard dirt separator.
- A removable magnetic ring and large drain valve make the DIRTMAG® quick and easy to flush collected dirt and ferrous impurities, including magnetite.
- DIRTMAG® will separate dirt particles down to 5 microns and up to 100% of ferrous impurities, including magnetite, during multiple passes of system fluid.
- A large low velocity zone dirt collection chamber reduces the frequency of cleaning, which can also be done while the system is operating.
- This multifunction device, with isolating valves, can also be used as a dosing point to inject chemical additives into the hydronic circuit.
Specs
–
| Product Type: | Dirt Eliminator |
|---|---|
| Max Temp (F): | 195°F |
| Max Pressure (PSI): | 45 |
| Connection Type: | FNPT x FNPT |
| Connection Method: | Threaded |
| Size: | 3/4" |
| Material: | Brass Steel |
| Type: | Magnetic |
