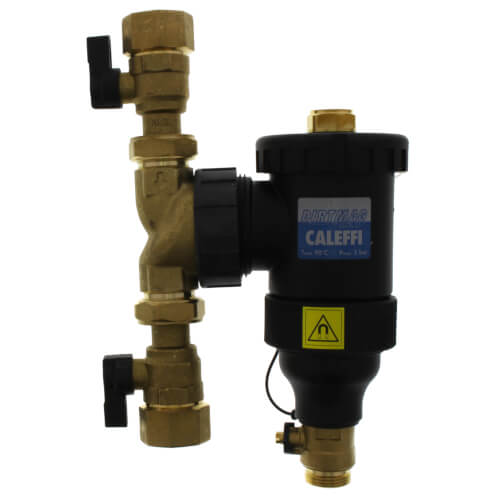

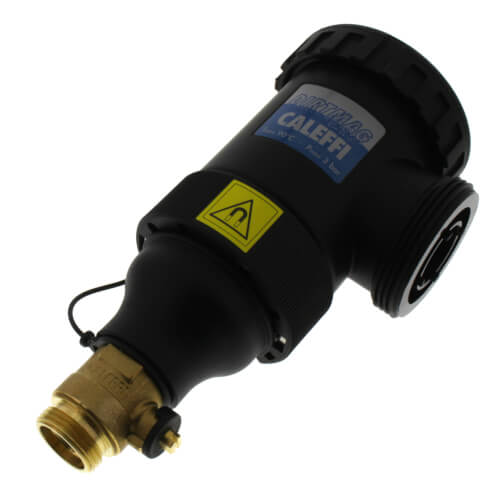

1" DIRTMAG - Dirt Separator with Magnet & Isolation Valves (Union NPT)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$253.69 each
In Stock
Get 3 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
FNPT x FNPT Connection
Brass, Steel
1"
45 MAX PSI
195°F Max Temp
Description
–
- The DIRTMAG® removes both ferrous and non-ferrous impurities continuously in a sealed hydronic heating and cooling system.
- A powerful removable external magnetic ring attracts ferrous impurities with 2-1/2" times the removal performance of a standard dirt separator.
- A removable magnetic ring and large drain valve make the DIRTMAG® quick and easy to flush collected dirt and ferrous impurities, including magnetite.
- DIRTMAG® will separate dirt particles down to 5 microns and up to 100% of ferrous impurities, including magnetite, during multiple passes of system fluid.
- A large low velocity zone dirt collection chamber reduces the frequency of cleaning, which can also be done while the system is operating.
- This multifunction device, with isolating valves, can also be used as a dosing point to inject chemical additives into the hydronic circuit.
Specs
–
| Product Type: | Dirt Eliminator |
|---|---|
| Size: | 1" |
| Max Temp (F): | 195°F |
| Max Pressure (PSI): | 45 |
| Material: | Brass Steel |
| Connection Type: | FNPT x FNPT |
| Connection Method: | Threaded |
| Type: | Magnetic |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
Showing 1-2 of 2 reviews
Best Installed on Bypass Piping
As other reviewers mentioned this has terrible flow capacity. Not shown by caleffi in schematic, but some others that produce this style indicate mounting on bypass piping with idea being that flow will not be suppressed, and that as water mixes long term it will all eventually pass through the trap. Maybe throttle bypass valves to balance flow.
Plumbob50
Framingham
3 years ago
Was this review helpful to you?
Abysmal Flow Rate
Isolation valves choke it down to 1/2" making it only flow 4gpm at the maximum recommended velocity. Use the sweat version and add in full port ball valves if you want it to actually be usable.
Chad
Darien, NY
8 years ago
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Do i need one installed on each zone of my boiler?
Asked by Christopher 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffTypically you have just one installed at the low point of the system, usually on the boiler return.
