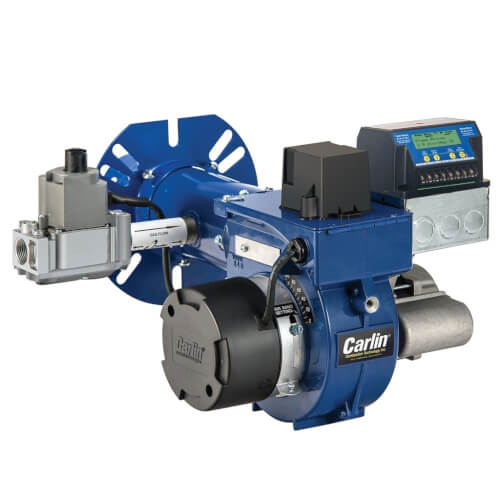

70,000-230,000 BTU EZ Gas Pro Conversion Burner w/ 9-Slot Diffuser

Overview:
The EZGas Pro burner converts existing oil-fired boilers, furnaces, and water heaters to natural gas or propane at a fraction of the cost of replacing the appliance. This natural gas converter comes factory packed with combustion control and gas fuel train. Unlike other conversion burners, it does not require a refractory liner – fires with or without a combustion chamber. Proven in extensive boiler and furnace testing, these gas conversion burners will meet your needs for residential gas burning applications. If you have any questions about this or any other oil to gas conversion burner, please contact us at your convenience.

Specifications:

• Fuels: Natural Gas or Propane Gas
• Maximum Supply Pressure: 14 inches w.c.
• Minimum Supply Pressure: 5.0 inches w.c.
• Manifold Pressure: 3.5 inches w.c.
• Carlin 60200FR Microprocessor Control
• 4 sec. Trial for Ignition (TFI)
• 1.3 Sec. FFRT
• Pre-purge and post-purge
• Serviceman Reset Protection
• Latch-up after three consecutive lockouts
• Interrupted Duty Ignition
• Recycle on Flame Failure
• Power: 120 vac, 60Hz, 1-Phase
• Current: Approximately 2.0 Amps
• Limit Circuit Input: 120 vac, 60 Hz
• Motor: 1/15 HP, 3450 RPM, 60 Hz
• Motor Frame: 48 Frame, “M” Flange
• Fuel Valve Power: 120 vac, 60 Hz
• Ignition: Carlin Model 41800 Solid State Electronic Ignition
• Ignition Voltage: 9,000 volts
