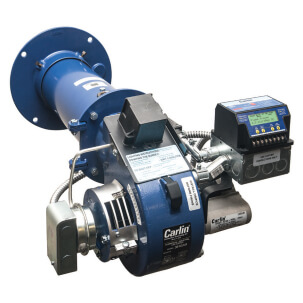

550,000-1,100,000 BTU 301GAS Multi-Fit Burner w/ 14" Air Tube, "C" Diffuser
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$3,417.50 each
In Stock
Get 7 Fri, Jul 3 - Tue, Jul 7
MANUALS (4)
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Lift Gate
–
This product weighs 27 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Propane, Natural Gas
Description
–
550,000-1,100,000 BTU 301GAS Multi-Fit Burner w/ 14" Air Tube, "C" Diffuser
Product Features
Product Features
- Converts from propane to natural gas with just an orifice change. No conversion kit needed!
- Factory-packaged with combustion control and gas train (assembled, shipped loose; also available as knockdown.
- Shipped completely pre-wired for easy installation and startup. Knockdown version also available.
- Does not require a refractory liner. Fires with or without a combustion chamber.
- Swing-away housing design
- 550,000-1,100,000 Btuh
- Fuels: Natural Gas or Propane Gas
- Maximum Supply Pressure: 14 inches w.c.
- Minimum Supply Pressure: 5.0 inches w.c.
- Manifold Pressure: 3.5 inches w.c.
- Carlin 60200FR Microprocessor Control
- 4 sec. Trial for Ignition (TFI)
- 1.3 Sec. FFRT
- Pre-purge and post-purge
- Serviceman Reset Protection
- Latch-up after three consecutive lockouts
- Interrupted Duty Ignition
- Recycle on Flame Failure
- Power: 120 vac, 60Hz, 1-Phase
- Current: Approximately 2.5 Amps
- Limit Circuit Input: 120 vac, 60 Hz
- Motor: 1/6 HP, 3450 RPM, 60 Hz
- Fuel Valve Power: 120 vac, 60 Hz
- Ignition: Carlin Model 41800 Solid State Electronic Ignition
- Ignition Voltage: 9,000 volts
Specs
–
| Product Type: | Burner |
|---|---|
| BTU Range: | 550,000 to 1,100,000 BTU |
| Fuel Type: | Propane Natural Gas |
