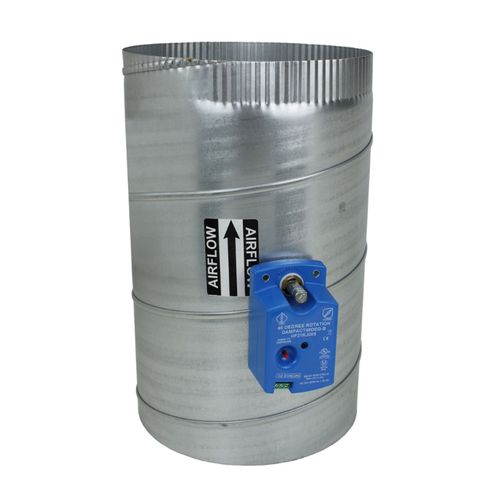

8" Round Zone Damper, DAMPRND08INC-B

These zone dampers are the latest in design and were developed to fit field requirements for a variety of duct work shapes and sizes. These dampers use 24 VAC direct drive actuators for smooth, quiet performance. There is a 1/2 in. direct-drive mounting hub for securing the damper blade and shaft to the actuator housing. A position indicator and angular rotation stop for viewing or manually setting minimum maximum damper positions facilitate ease of installation. A spring loaded disengagement button to momentarily release main gear and damper blade allows for manual positioning of installed dampers.
The damper motor and terminal block wiring are protected by a plastic cover with a removable door. Permanently lubricated bushings, with a split shaft design for round and rectangular style dampers, secure the damper blade to the shaft for efficient reliable service.

Specifications:

• Damper Type: Zone
• Size: 8"
• CFM: 220
• Color: Silver
• Composition: 1/2" Direct Drive Mounting Hub, Position Indicator, Angular Rotation, Spring Loaded Disengagement Button, Plastic Covered Damper motor, Terminal Block wiring with a Removable Door, Permanently lubricated bushings with a split shaft design
• Country of Origin: USA
• Cubic Measurement: 0.5185
• Cycle/Hertz: 60 Hz
• Dimensional Weight: 20
• Emergency Heat Switch: No
• Heat Pump Compatible: No
• Mounting: Side
• Network Zoning: No
• OPT Code: 1PDAMPRND08INC-B
• Phase: Single
• Power Method: Hardwired
• Prop 65: Yes
• Shape: Round
• UOM: EA
• Voltage: 24 VAC
• Length: 8 inches (in)
• Width: 8 inches (in)
• Height: 14 inches (in)
• Weight: 6 pounds (lbs)
