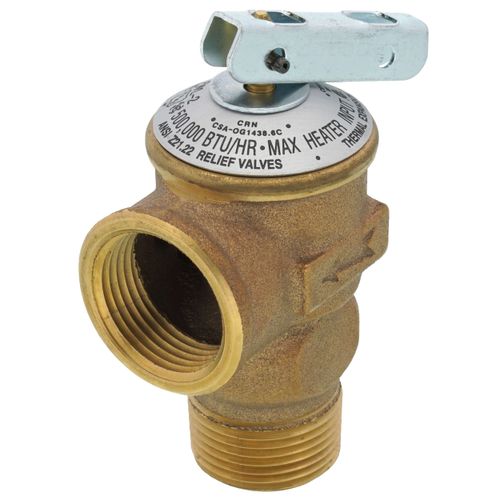

3/4" FWL-2 Pressure Relief Valve (125 PSI)

The FWL-2 is a pressure only relief valve designed specifically for the protection of hot water supply systems where over-pressure conditions are likely to occur as a result of thermal expansion.

Completely automatic, the FWL-2 reseats after pressure relief. The valve may be installed directly on the tank or in a tee and is appropriate for either side (hot or cold) of the water heater.

The FWL-2 is fitted with a bronze body, brass and stainless steel internal parts, a silicone seat disc and a stainless steel pressure spring.The FWL-2 is compact and economical. The standard factory relief settings for 1/2" and 3/4" are 75, 125 or 150 psi.

Features

• Specifically for the protection of hot water supply systems
• Offers protection from over-pressure conditions that are likely to occur as a result of thermal expansion
• Compact and economical
• Every valve is tested for performance prior to shipping
• Application: Commercial and domestic hot water heating applications.

Specifications

• :Available Set pressures: 150 psi (75 and 125 psi available)
• Threaded (NPT): Male inlet and female outlet
• Service :Water
